The small size of ALL IN ONE is convenient for doctors to use in clinics, wards and outpatient clinics. It can be used in many fields, such as children, elderly people with inconvenient movements and emergency situations for special situations. Portable endoscopes can be used for diagnosis.


Model:V70-F03(square)                                                                    Model:V70-F02(circle)



Endoscope Camera Feature
◎ Sensor Size: Sony CCD 1/2”
◎ Effective Pixels: 800 TV Line
◎ Resolution: 1280 x 1024 pixels
◎ Video Format: NTSC / PAL
◎   Auto White Balance
◎ Camera focal length：F 14mm/F18mm/F20mm/F22mm/F25mm/F28mm/
                                           F32mm/F35mm/F18-35mm(Zoom 15-25mm)
◎ Sensor Size: Sony CCD 1/2”
◎ Focal Mount: C Mount
◎ Signal Output: AV/VGA
◎ Size: φ50 x L42mm

M55 Display Unit Feature
◆ 3.5”digital LCD monitor, resolution (720x640)
◆ Support Audio and Video recording (640*480.AVI)
◆ Support Snapshot (640*480.JPG)
◆ Built-in Speaker
◆ 8x zoom in/out
◆ Mirror function: the user can turn the reverse image projected by the mirror
     into a positive image
◆ Rechargeable Li-ion battery
◆ When the battery is fully charged, it can be used for about 240 minutes.
◆ Running time up to 150 minutes when full charge
◆ Rubber protection back cover: anti-fall, anti-skid
◆ Built-in 1/4”20 pitch machine screw stud for supporting camera stand on the desk.
◆ TV output (PAL/NTSC)
◆ Support 17 operation languages
◆ USB port (1.1/2.0) allows user transfer data to PC
◆ Support SD card up to 32GB
◆ Power Charger: 100-240V AC in/ 12V DC out
◆ Working temperature: 0°C~40°C

Fiber Optical Rigid Scope Feature
◆ Outside Diameter：φ1.9mm-φ10mm
◆ Director of View：0°/ 30°/ 70°
◆ Working Length：45mm-330mm
◆ Includes 3 standard posts

Hand-held Light Source Feature
◆ Enable to Support：ACMI/ WOLF/ STORZ/ OLYMPUS Endoscope
◆ Light Source：LED
◆ Working Hour：90 minutes
◆ Output Power：5W
◆ Hand Holder Length：120mm

ITEM	SPECIFICATIONS
Camera Effective Pixels	1028 x 1024 pixels
Video Format	NTSC / PAL
Focal Mount	C-Mount
Bit depths	Auto White Balance
Sensor Size	800 TV Line
Output Power	5W
Light Source	LED
Camera lens	F14mm/F18mm/F20mm/F22mm/ F25mm/F28mm/F32mm/F35mm
Enable Sensor Size	Sony CCD 1/2”
Supports zoom-in/zoom-out	F18-35mm
Size	φ50 x L42mm

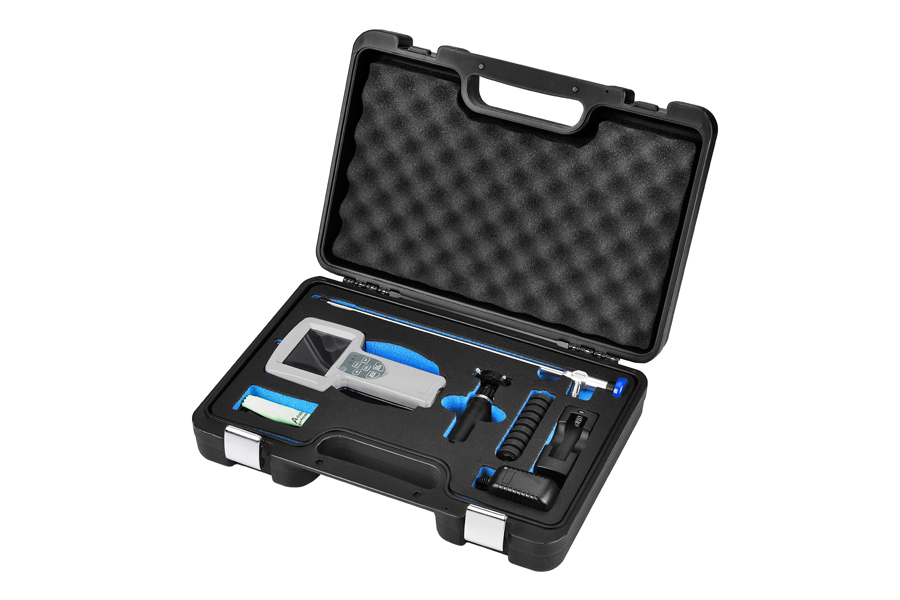

Accessory & Packing
5V Power Charger/ Micro SD Card/ USB Cable/ User Manual/ Carry Case/Q-tip/Cleaning cloth
