For A Better Inspection Scope

◆ Model:V70-SF01 / V70-SF01P / V70-SF02

Product Description
◆ Endoscope camera and accessory holder are devices that fix the endoscope and the camera to the bracket so that the viewing angle can be adjusted in all directions.
◆ It can be used to fix camera endoscopes in minimally invasive surgery such as arthroscopy and endoscopy.
◆ Endoscope camera and accessory holder are rotated and fixed by four support points to produce 360° panoramic view.
◆ Easy to assemble and moving direction
◆ Stable and able to clamp thicker surface
◆ Able to adjust to 360〫panoramic view

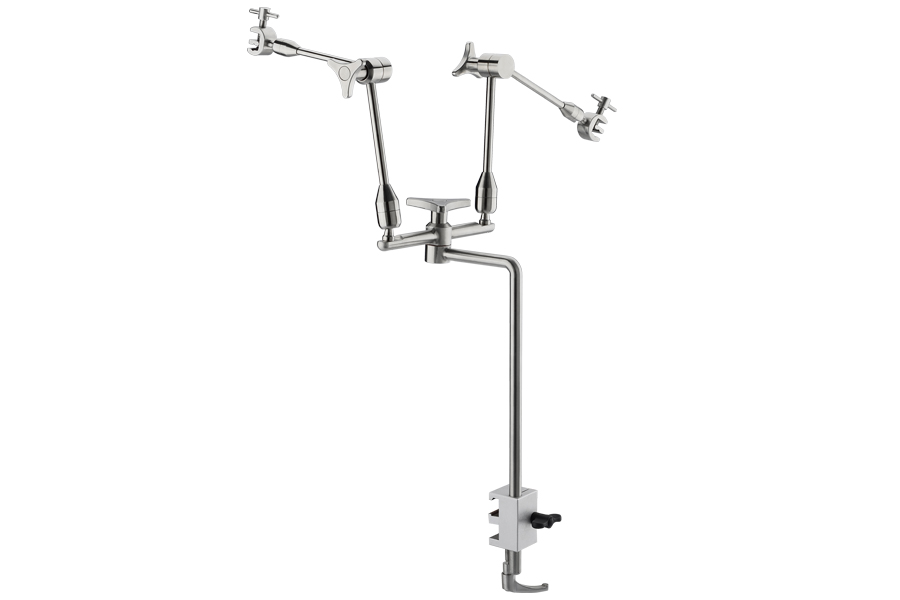

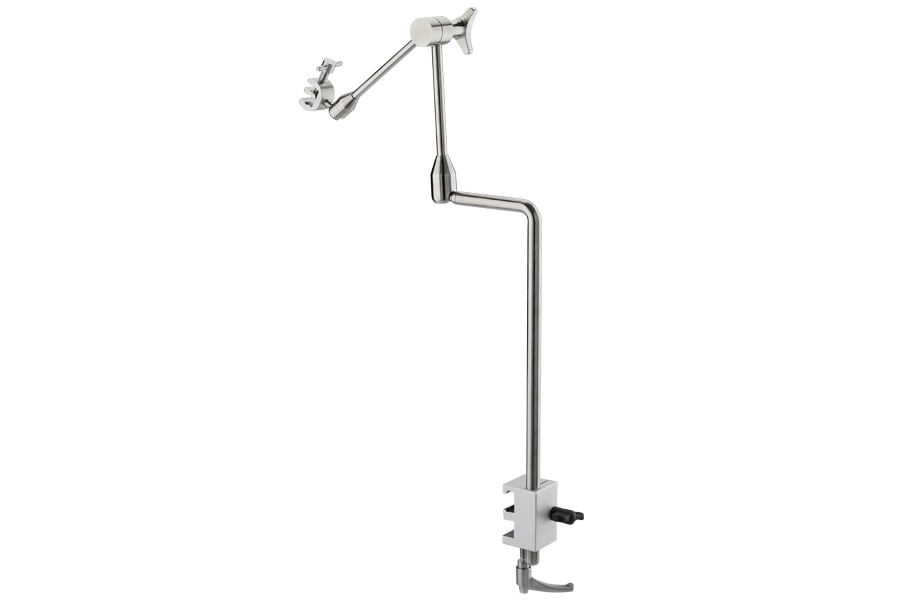

​V70-SF01                                          V70-SF01P                                                       V70-SF02   ​




Instructions
1.Adjust the bracket knob to secure the mount to the table.
2.Relax the hinge knob to adjust the holder to the appropriate height.
3.Loosen the pivot knob and adjust the upper and lower round bars to the proper angle.
4.Loosen the gripper knob and adjust the upper and lower mounts to secure the camera and endoscope.


Cleaning and maintenance
For daily cleaning and maintenance, please use neutral detergent and clean rag Clean and wipe the appearance and let it dry.
This product is suitable for use in medical institutions. It is recommended to use it at least once a day or after each use. Clean and maintain.

Product appearance description
Item Name Quantity Item Name Quantity
1 Upper clip 1 12 Lower shaft 1
2 Lower fixing clip 1 13 Support round rod 1
3 Upper clamp shaft 1 14 Fixed block 1
4 Upper shaft mount 1 15 Clip holder 1
5 Upper mount 1 16 Adjustment frame 1
6 Upper round bar 1 17 Jaw fixing washer 1
7 Upper round rod mount 1 18 Fixed piece 1
8 Lower round rod mount 1 19 Gripper knob 1
9 Lower round bar 1 20 Rotary knob 1
10 Lower mount 1 21 Fixing knob 2
11 Lower shaft mount 1 22 Cross head copper screw (M3X8) 4



Endoscope camera & Accessory holder
