Product description

For A Better Inspection Scope

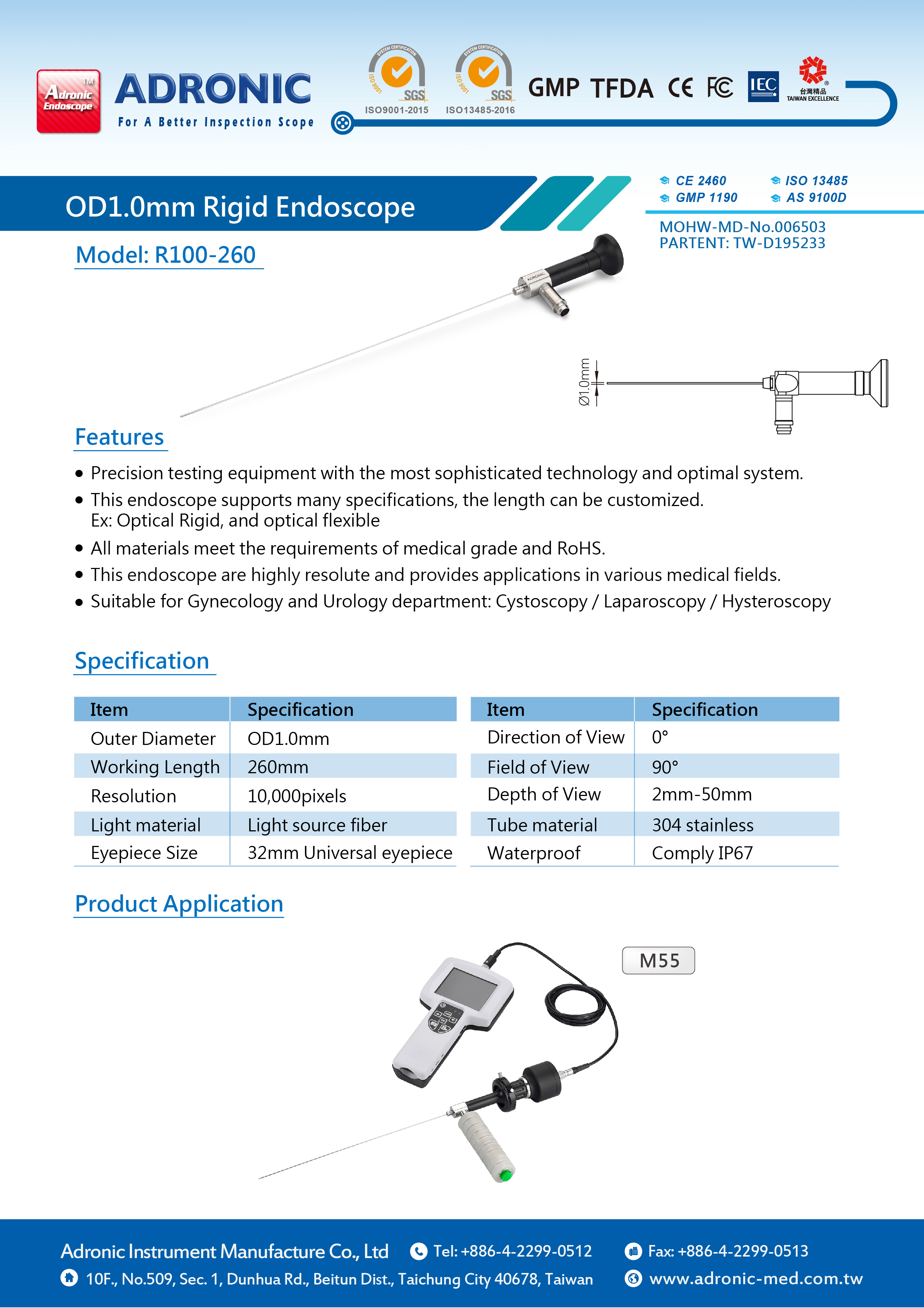

◆ Model:R100

OD1.0mm Rigid Scope
Adronic endoscope provide improves visibility and provides four times more information than conventional Full HD imaging system, closer distance and realizes rich color reproduction and provides suitable colors for each clinical discipline. Additional, enables easier determination of tissue boundaries. More importation, it can improve visibility and operability with a large screen.


3 Standard Light Post
Adronic endoscope is able to support other light source system, it includes 3 standard light post adapter same as ACMI, WOLF, STORZ and OLYMPUS. The first (ACMI) light post is permanently attached to endoscope and could not be removed. The second (WOLF) light post attaches to the first one. The end (STORZ/OLYMPUS) light post slides over the second one.

Feature
◆ Precision testing equipment with the most sophisticated technology and optimal system.
◆ Wide applications in medical treatment, industry detection, military and police.
◆ Various specifications: soft, rigid, long and short all can be customized.
   All materials meet the requirements of medical grade and RoHS.
◆ Adronic Endoscope applied to Gynecology / Urology department:Cystoscope / Laparoscopic / Hysteroscope

Application System
M55


Item Specification
Outer Diameter OD1.0mm
Working Length 260mm
Resolution 10,000 pixels
Light material Light source fiber
Eyepiece Size 32mm Universal eyepiece
Direction of View
Field of View 90°
Depth of View 2mm-50mm
Tube material 304 stainless
Waterproof Comply IP67
OD1.0mm Rigid Scope
