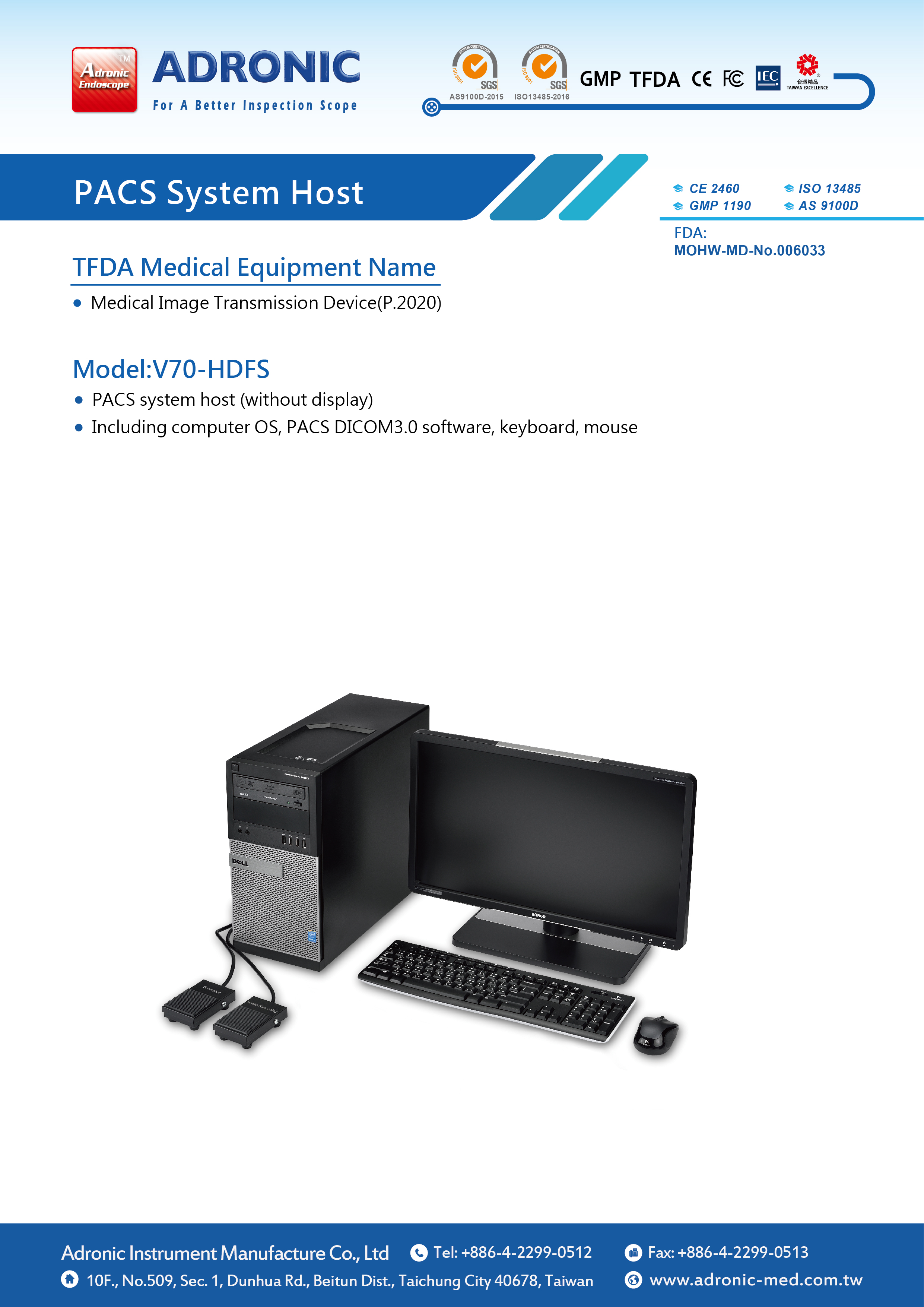

​Model: V70-HDFS
◆ TFDA Medical Equipment Name:Medical Image Transmission Device(P.2020)
◆ FDA:MOHW-MD-No.006033

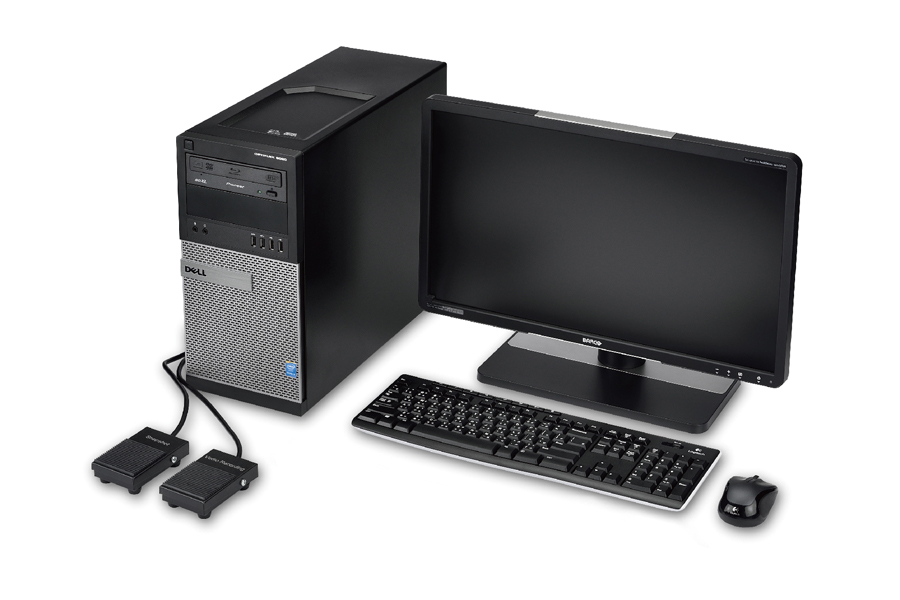

◆ PACS system host (without display)
◆ Including computer OS, PACS DICOM3.0 software, keyboard, mouse

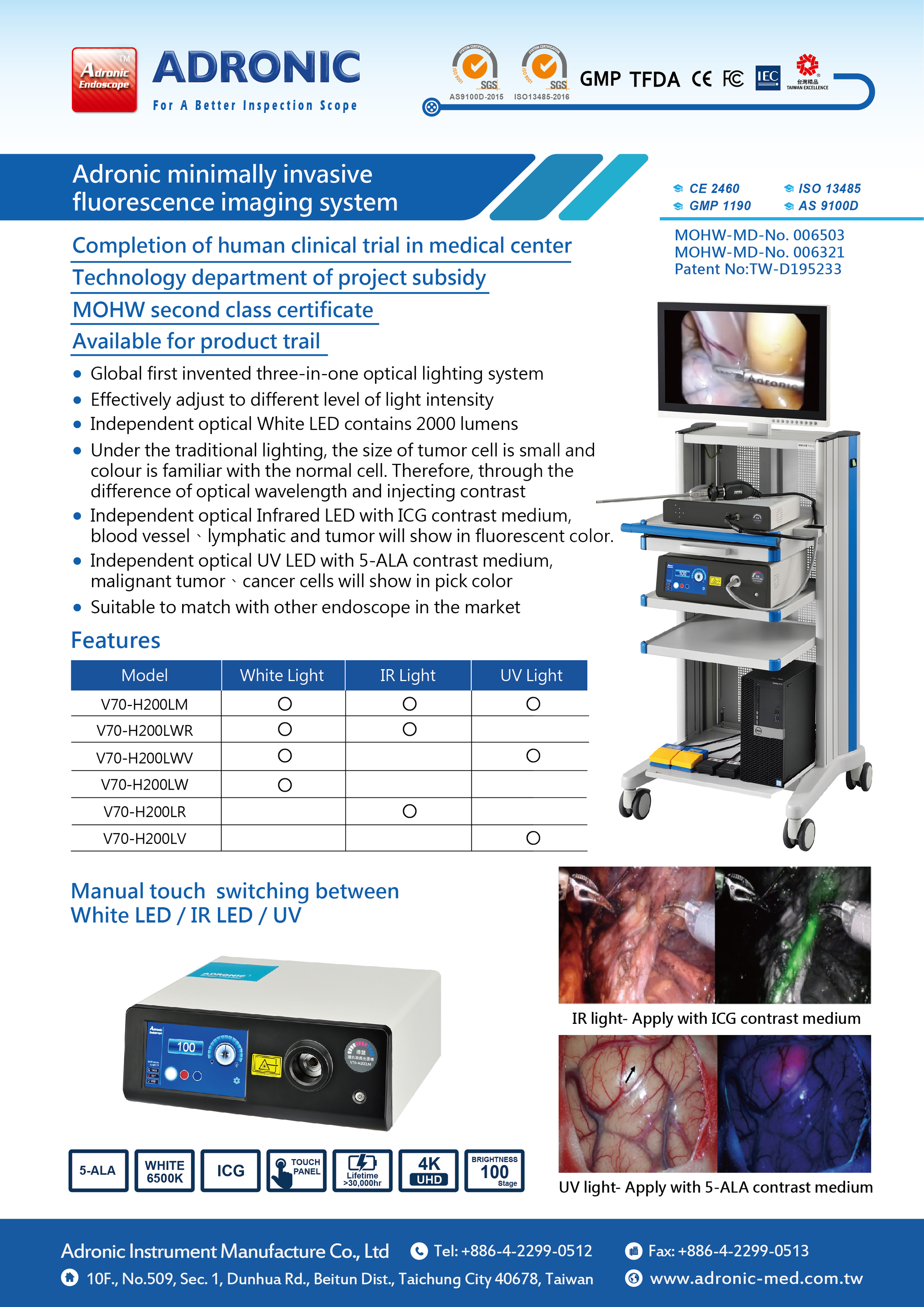

Adronic minimally invasive fluorescence imaging system
Completion of human clinical trial in medical center
Technology department of project subsidy MOHW second class certificate Available for product trail

◆ Global first invented three-in-one optical lighting system
◆ Effectively adjust to different level of light intensity
◆ Independent optical White LED contains 2000 lumens
◆ Under the traditional lighting, the size of tumor cell is small and
   colour is familiar with the normal cell. Therefore, through the
   difference of optical wavelength and injecting contrast
◆ Independent optical Infrared LED with ICG contrast medium,
   blood vessel、lymphatic and tumor will show in fluorescent color.
◆ Independent optical UV LED with 5-ALA contrast medium,
   malignant tumor、cancer cells will show in pick color
◆ Suitable to match with other endoscope in the market


Model	White Light	IR Light	UV Light
V70-H200LM	○	○	○
V70-H200LWR	○	○
V70-H200LWV	○		○
V70-H200LW	○
V70-H200LR		○
V70-H200LV			○

Manual touch switching between White LED / IR LED / UV



                   IR light- Apply with ICG contrast medium


                   UV light- Apply with 5-ALA contrast medium

Adronic 4K HD PACS Station
Multispectral light scattering endoscopic imaging of Fluorescent and Neurosurgery Tumo Fluorescent imaging of  Blood vessel and Neurosurgery Tumor
The unique three independent optical glass spectral design white, blue and IR through foot pedal device which offers a fast and conveniences way that helps the doctor to knows where exactly the tumor cell are located by 5-ALA or ICG contrast medium.
V70-H200LWR When the ICG contrast medium uses infrared wave (IR) that can therefore causes the tumor cells to fluoresce. Doctor will be able to observe where exactly the tumor cells are at.

V70-H200LWV When the 5-ALA contrast medium inject the veins, it can absorb the blue wave, that then causes the tumor show in red from the monitor display. Doctor will be able to observe where exactly the tumor cells are at.
V70-H200LW Ultra-powerful white light source, The image displayed by the endoscope with this light source is excellent. Suitable for Neurological Surgery.

At present, the medical community generally detect the cancer cells that are small and flat. By using the traditional conventional light source, the color of the cancer cells will almost be  identical to the normal cells that leads to the extreme difficulty to identify whether the cells needs to be remove. Due to the density of the neovascular cancer molecules are higher than the normal tissues, so by using the tradition endoscopy the doctor will only be able to see out-look of the cancer molecules. Adronic creates an Optical Multispectral Endoscope Camera Video System by using high-end Optical Glass Multicomponent Technology with a independent individual wavelength to inspect tumor. For example, when the 5-ALA contrast medium inject the veins, it can absorb the blue wave, that then causes the tumor show in red from the monitor display. Furthermore, the ICG contrast medium uses infrared wave (IR) that can therefore causes the tumor cells to fluoresce. By using Adronic Optical Multispectral Endoscope Camera Video System doctor will be able to obesere where exactly the tumor cells are at.

The inspection of the Optical Multispectral Endoscope Camera Video System are identical
with the traditional endoscopy, however, by using the Adronic Optical Multispectral Endoscope Camera Video System it provided access to identified the tissue that cannot be easily see. By using the foot pedal device it can change to different mode base on different wavelength, then through the use of contrast medium it will be easier to identify and obser the tumor cells. It can effectively decrease the risks of damaging the normal tissues and the veins inside human body. In addition, it provide the best situation in resecting the sick cells in the save zone that helps the surgeons to make the right move in the operation.

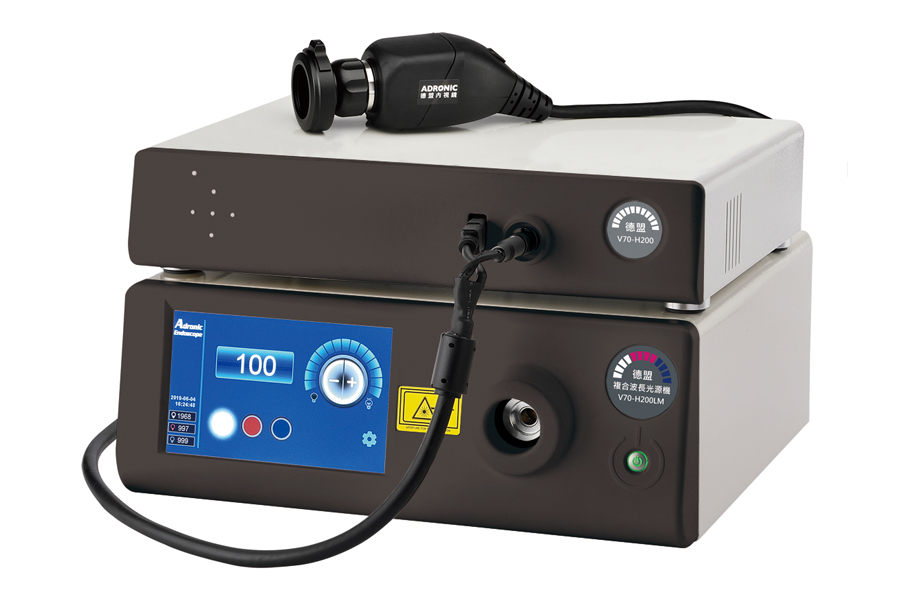

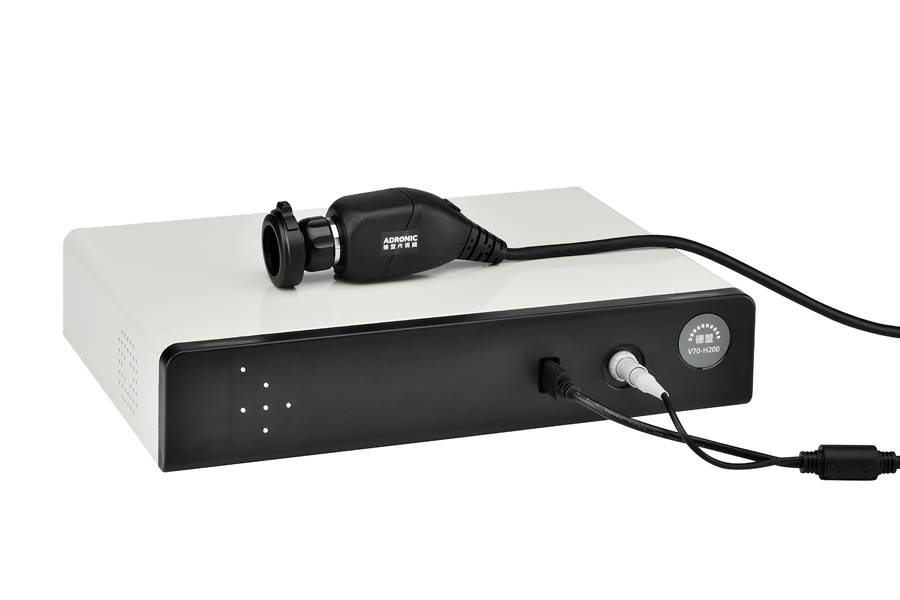

Adronic Optical Multispectral Endoscope Camera Video System includes 4K rigid endoscope, HD endoscope camera with CCU, compounded wavelength optical glass light source and a 4K HD PACS video image system station. 4K rigid endoscope provide crystal image that can identify the difference tumors in the veins that helps the doctor to identify the exact location of the sick cells. 4K HD PACS image capture station helps doctor transfer all images data to main server for necessary records. The unique three independent optical glass spectral design white, blue and IR through foot pedal device which offers a fast and conveniences way that helps the doctor to knows where exactly the tumor cell are located.

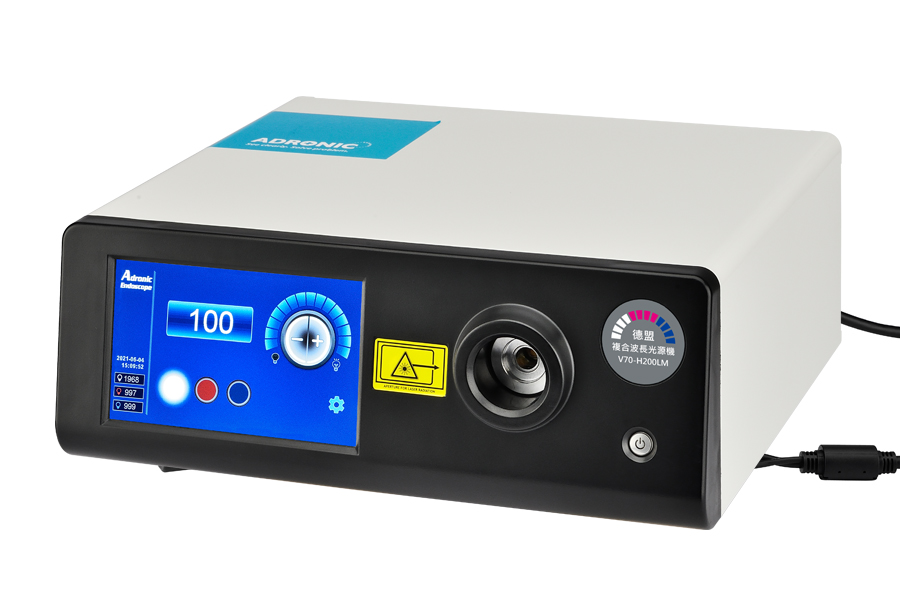

Features
◆ 0.8mm Medical flexible Fiber Scope
◆ Ultra HD 4K image out put
◆ Full HD camera 1080P/60fps resolution
◆ 100% design and made in Taiwan
◆ Unique three independent optical glass spectral white,
     blue and IR individual wavelength design.
◆ 100% after sales/repairing services
◆ 7 inch touch panel
◆ Foot pedal allow user to switch White or RED or UV light output.
◆ Advance touch panel allow user to switch White or RED or UV light output
◆ Allow to identify tumor located by 5-ALA or ICG contrast medium inject the veins,
◆ Fast and easy to adjust different light wavelength as well as brightness output level.

Medical Image PACS System
Features
◆ Interface support 3 languages: English, Traditional Chinese, Simplified Chinese.
◆ Foot pedal support image capture (JPEG) and video recording (MPEG4).
◆ Enable to capture the image during recording.
◆ Browse images and video, support magnifier,zoom image, and rotation.
◆ Burn a DVD or Blue DVD with patient information,examination images and video.
◆ Support printing examination images.
◆ Enable to save the image and video automatically in hard disk while the system shut down.






Model	White light	IR Light	UV light
V70-H200LM	○	○	○
V70-H200LWR	○	○
V70-H200LWV	○		○
V70-H200LW	○
V70-H200LR		○
V70-H200LV			○
