Adronic Neurosurgery Surgical Instrument
Clinical Usage
Due to the limited space in a Brain tumor surgery treatment, the range of the medical machinery is limited. Adronic Neurosurgery Surgical Instrument provides an increase in observational range and make the machinery more flexible. This provides efficiency for doctors to identify and resect the brain tumor.
Adronic Neurosurgery Surgical Instrument License certificate
Category K: Devices for Neuroscience
License Number:MOHW-MD-(I)-No.007230
License Expiry Date:Apr.25.2023
Model(Type):All Models
%20-%20%E8%A1%9B%E9%83%A8%E9%86%AB%E5%99%A8%E8%A3%BD%E5%A3%B9%E5%AD%97%E7%AC%AC007230%E8%99%9F(1).jpg)
-%E5%BE%B7%E7%9B%9F%E9%9D%9E%E5%8B%95%E5%8A%9B%E5%BC%8F%E7%A5%9E%E7%B6%93%E5%A4%96%E7%A7%91%E7%94%A8%E5%99%A8%E6%A2%B0(%E6%9C%AA%E6%BB%85%E8%8F%8C).jpg)

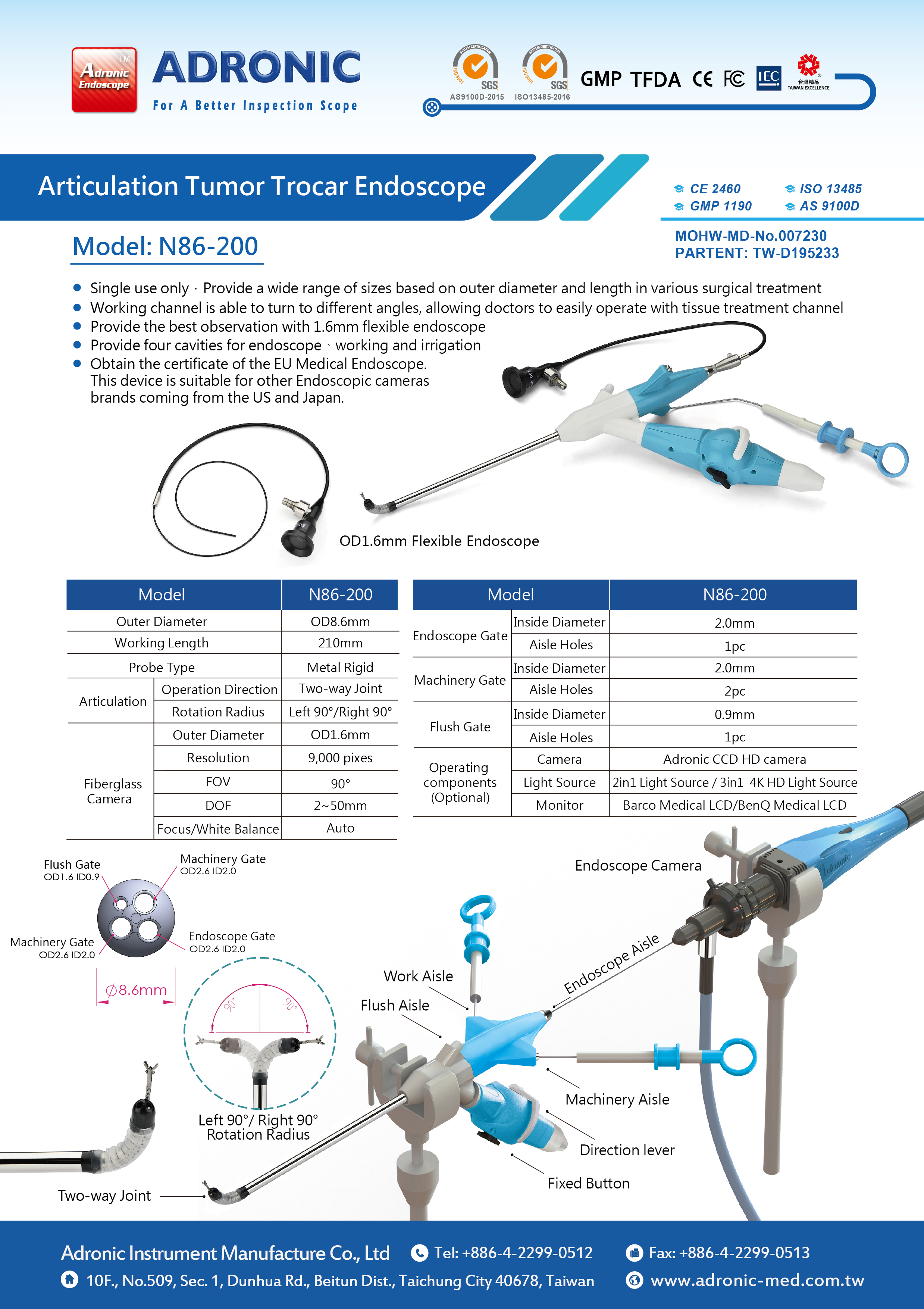

◆ Model:N86-200

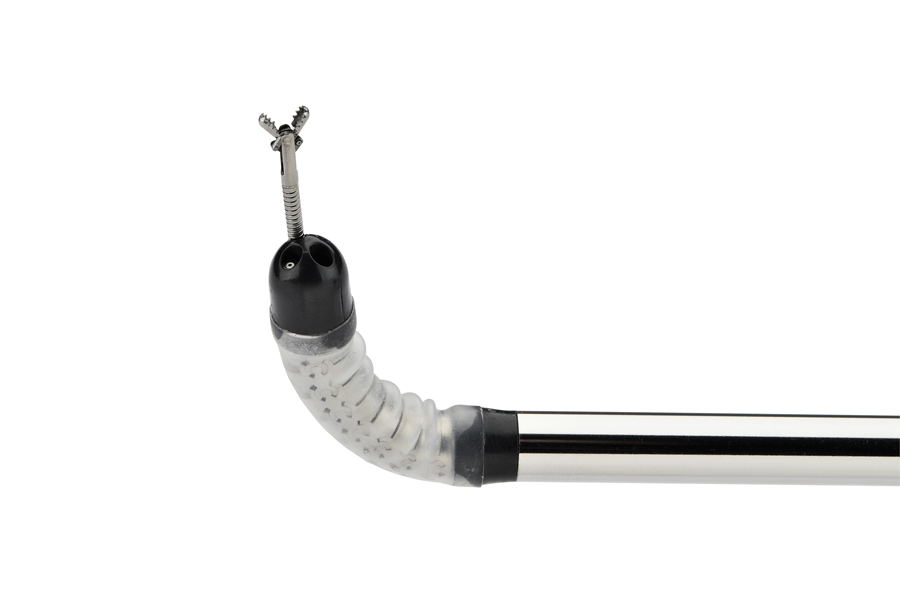

Articulation Tumor Trocar Endoscope
◆ Single use only
◆ Provide four cavities for endoscope、working and irrigation
◆ Working channel is able to turn to different angles, allowing
doctors to easily operate with tissue treatment channel
◆ Provide the best observation with 1.6mm flexible endoscope
◆ Provide a wide range of sizes based on outer diameter and
length in various surgical treatment
◆ Obtain the certificate of the EU Medical Endoscope.
This device is suitable for other Endoscopic cameras brands
coming from the US and Japan.
◆ Obtain the Class II medical device certificate from the Ministry of Health and
Welfare Class II medical device certificate
◆ Optical Rigid Endoscopes use HD cameras to perform inspections.
This allows unique inspection coming from many fields in the medical industry.

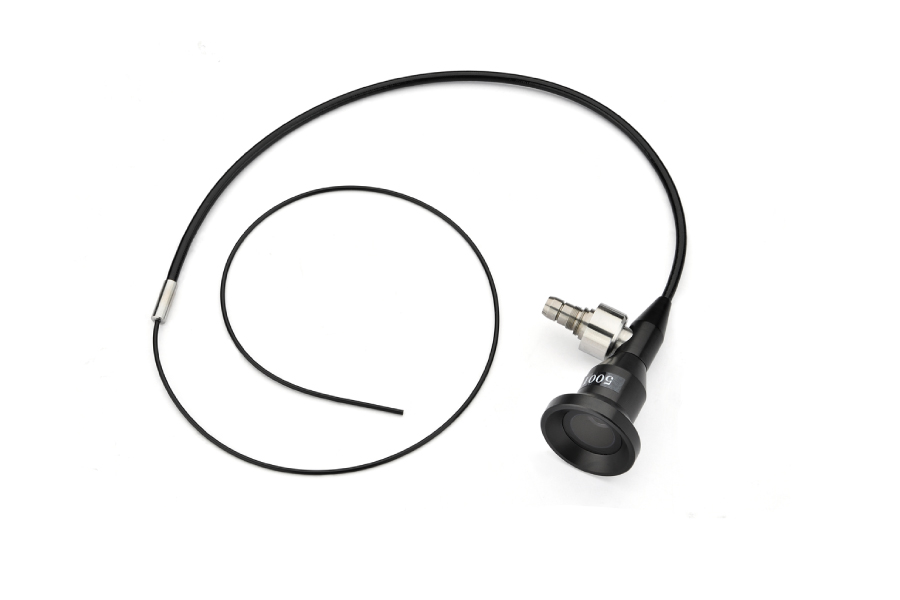

OD1.6mm Flexible Endoscope
Rotation Radius: Left 90°/ Right 90°
Articulation Tumor Trocar Endoscope
◆ Single use only
◆ Provide four cavities for endoscope、working and irrigation
◆ Working channel is able to turn to different angles, allowing
doctors to easily operate with tissue treatment channel
◆ Provide the best observation with 1.6mm flexible endoscope
◆ Provide a wide range of sizes based on outer diameter and
length in various surgical treatment
◆ Obtain the certificate of the EU Medical Endoscope.
This device is suitable for other Endoscopic cameras brands
coming from the US and Japan.
◆ Obtain the Class II medical device certificate from the Ministry of Health and
Welfare Class II medical device certificate
◆ Optical Rigid Endoscopes use HD cameras to perform inspections.
This allows unique inspection coming from many fields in the medical industry.
OD1.6mm Flexible Endoscope
Rotation Radius: Left 90°/ Right 90°
| Model | N86-200 | |||
|---|---|---|---|---|
| Articulation Tumor Trocar | ||||
| Outer Diameter | OD8.6mm | |||
| Working Length | 210mm | |||
| Probe Type | Metal Rigid | |||
| Articulation | Operation Direction | Two-way Joint | ||
| Rotation Radius | ||||
| Left 90°/Right 90° | ||||
| Fiberglass Camera | Outer Diameter | OD1.6mm | ||
| Resolution | 9,000 pixes | |||
| FOV | 90° | |||
| DOF | 2~50mm | |||
| Focus/White Balance | Auto | |||
| Endoscope Gate | Inside Diameter | 2.0mm | ||
| Aisle Holes | ||||
| 1pc | ||||
| Machinery Gate | Inside Diameter | 2.0mm | ||
| Aisle Holes | ||||
| 2pc | ||||
| Flush Gate | Inside Diameter | 0.9mm | ||
| Aisle Holes | ||||
| 1pc | ||||
| Operating components (Optional) |
Camera | Adronic CCD HD camera | ||
| Light Source | ||||
| 2in1 Light Source / 3in1 4K HD Light Source | ||||
| Monitor | Barco Medical LCD/BenQ Medical LCD | |||
