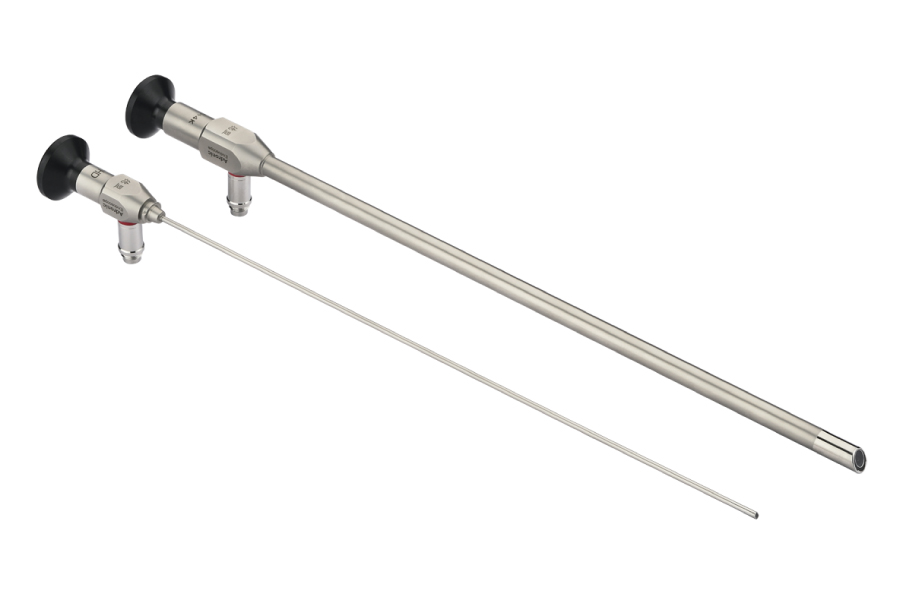

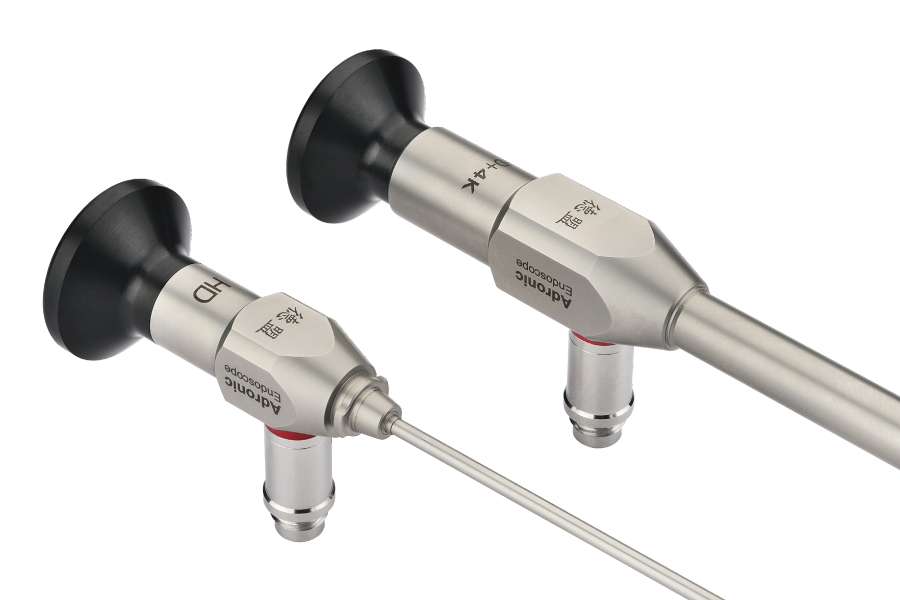

Adronic Video Scope (Plastic surgery)
Operating room dedicated Endoscope
Feature
◆ Precision testing equipment with the most sophisticated technology and optimal system.
◆ Various specifications: soft, rigid, long and short all can be customized.
◆ All materials meet the requirements of medical grade and RoHS.
◆ Wide applications in medical treatment, industry detection, military and police.
◆ Adronic endoscope applied to Plastic surgery：Plastic surgery Endoscope
Plastic surgery Endoscope specifications
Outer Diameter: OD4.0mm / Direction of View: 30° / Working Length:175mm
Outer Diameter: OD5.0mm / Direction of View: 30° / Working Length:302mm
.jpg)

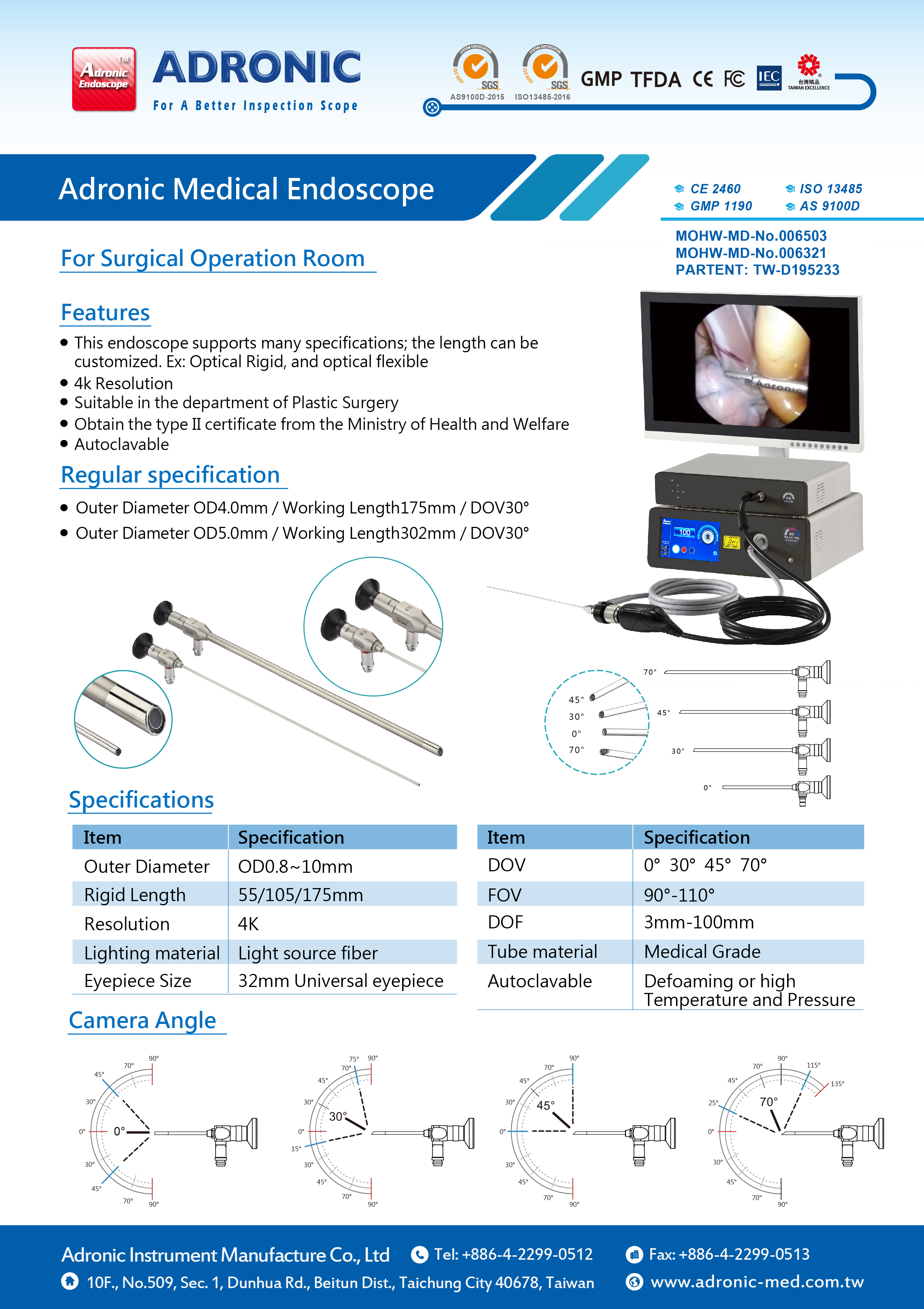

Operating room dedicated Endoscope
Feature
◆ Precision testing equipment with the most sophisticated technology and optimal system.
◆ Various specifications: soft, rigid, long and short all can be customized.
◆ All materials meet the requirements of medical grade and RoHS.
◆ Wide applications in medical treatment, industry detection, military and police.
◆ Adronic endoscope applied to Plastic surgery：Plastic surgery Endoscope
Plastic surgery Endoscope specifications
Outer Diameter: OD4.0mm / Direction of View: 30° / Working Length:175mm
Outer Diameter: OD5.0mm / Direction of View: 30° / Working Length:302mm

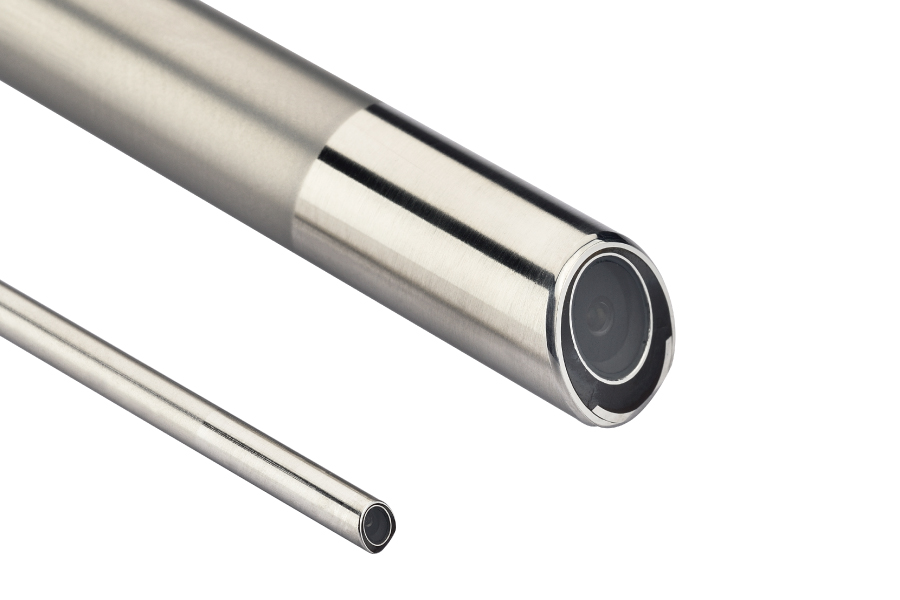

4K Video Rigid Scope Specification→OD0.8mm~OD10mm
◆ Registration Number:MOHW-MD-No. 006503/MOHW-MD-No. 006321
◆ High image quality, clear image
◆ Corresponding to moist heat sterilization and high temperature and high pressure steam sterilization
◆ Outer Diameter: 0.8mm~10mm
◆ Direction of View: 0°/ 30°/ 45°/ 70°
◆ Working Length: 55 / 105 / 175mm
| Item | Specification |
|---|---|
| Outer Diameter | OD0.8~10mm |
| Working Length | 55 / 105 / 175mm |
| Resolution | 4K |
| Light material | Light source fiber |
| Eyepiece Size | 32mm Universal eyepiece |
| Direction of View | 0° 30° 45° 70° |
| Field of View | 90° |
| Depth of View | 3mm-50mm |
| Tube material | 304 stainless |
| Waterproof | Comply IP67 |
