◆ Model:R800、R8030、R8070

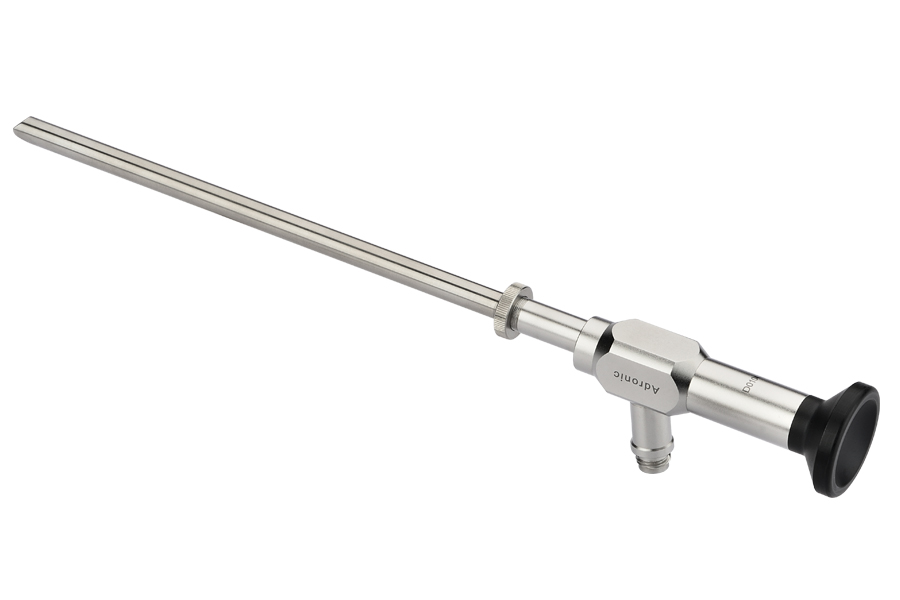

OD8.0mm Rigid Scope
Adronic Endoscope provide improves visibility and provides four times more information than conventional Full HD imaging system, closer distance and realizes rich color reproduction and provides suitable colors for each clinical discipline. Additional, enables easier determination of tissue boundaries. More importation, it can improve visibility and operability with a large screen.

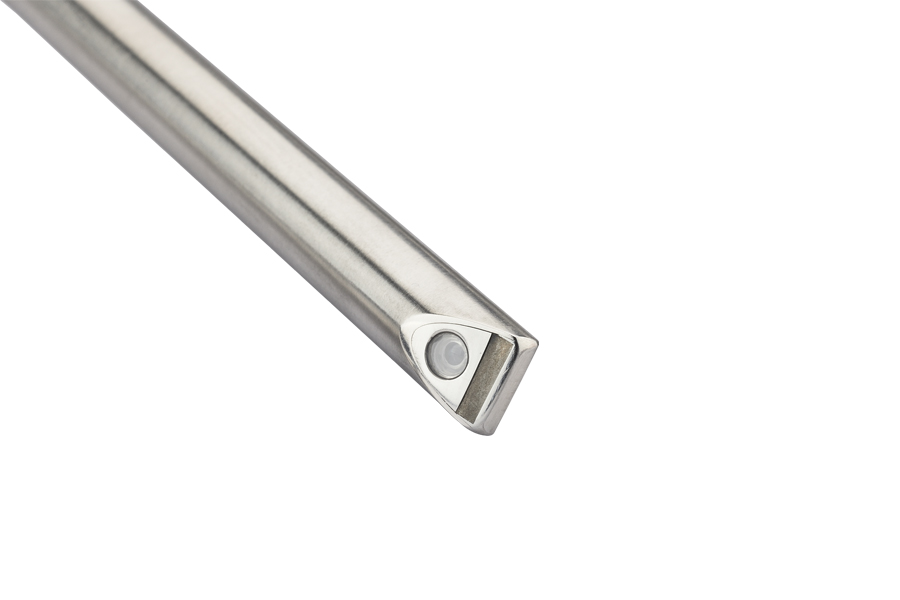

3 Standard Light Post
Adronic Endoscope is able to support other light source system, it includes 3 standard light post adapter same as ACMI, WOLF, STORZ and OLYMPUS. The first (ACMI) light post is permanently attached to endoscope and could not be removed. The second (WOLF) light post attaches to the first one. The end (STORZ/OLYMPUS) light post slides over the second one.

Feature
◆ Precision testing equipment with the most sophisticated technology and optimal system.
◆ Wide applications in medical treatment, industry detection, military and police.
◆ Various specifications: soft, rigid, long and short all can be customized.
   All materials meet the requirements of medical grade and RoHS.
◆ Adronic Endoscope applied to Ears, Nose, and Throat / Gynecology /
   General Surgery / Neurological Surgery：Nasoscope(4mm) / Laparoscopic(10mm) /
   Brain neurosurgery

Direction of View

Application System
M55


Item	Specification
Outer Diameter	OD8.0mm
Working Length	170-178mm
Resolution	-
Light material	Light source fiber
Eyepiece Size	32mm Universal eyepiece
Direction of View	0° 30° 70°
Field of View	90°
Depth of View	3mm-50mm
Tube material	304 stainless
Waterproof	Comply IP67
