​◆ Model:V70-H200LW

Adronic Medical UV Light Source

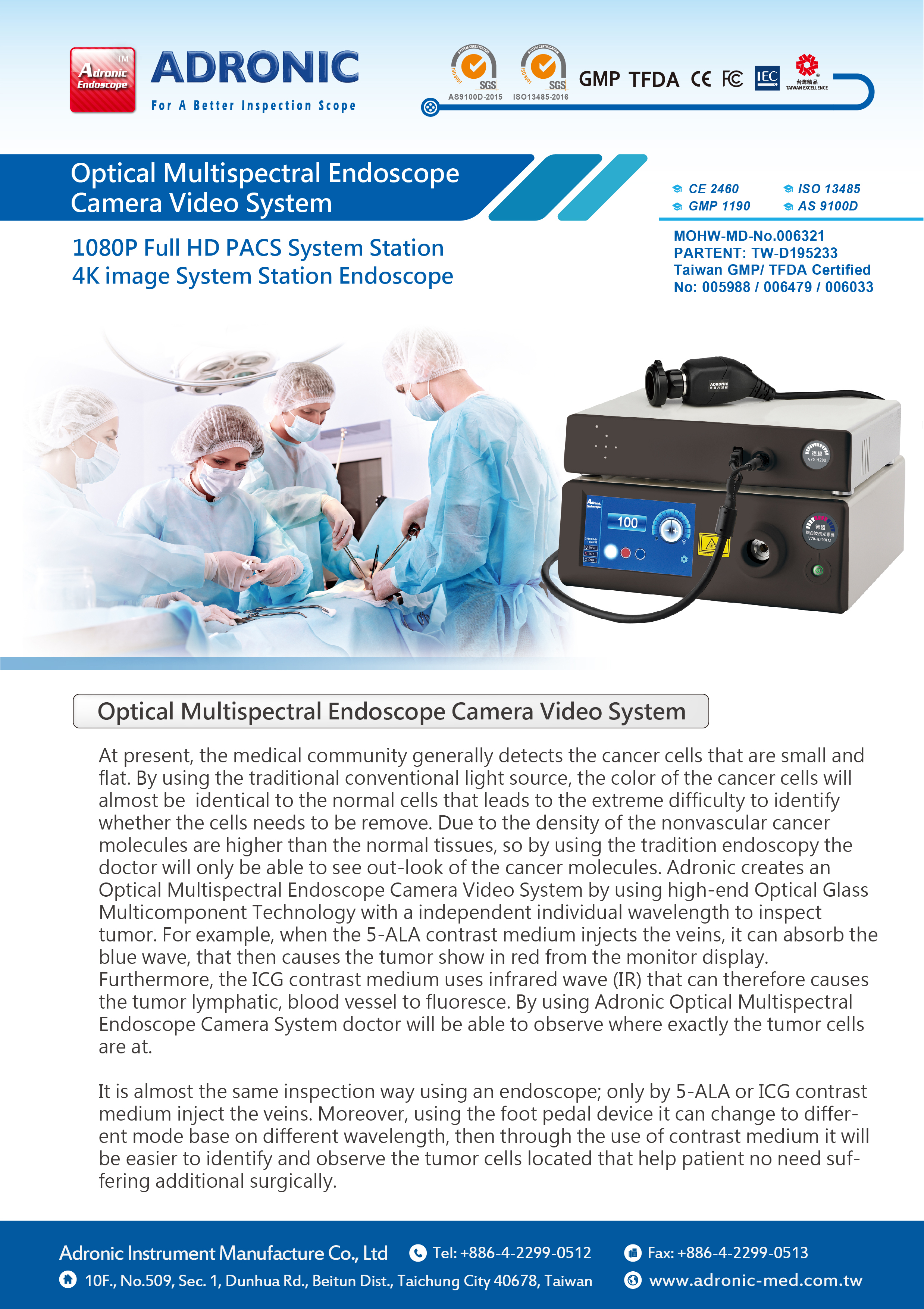

Multiparametric Endoscopy for the detection of tumor or cancer using wide field multispectral imaging during 5- ALA




Adronic 4K HD Station
Multispectral light scattering endoscopic Fluorescent imaging of  Blood vessel and Neurosurgery Tumor.
The unique three independent optical glass spectral design white, blue and IR through foot pedal device which offers a fast and conveniences way that helps the doctor to knows where exactly the tumor cell are located by 5-ALA or ICG contrast medium.
V70-H200LWR When the ICG contrast medium uses infrared wave (IR) that can therefore causes the tumor cells to fluoresce. Doctor will be able to observe where exactly the tumor cells are at.
V70-H200LWV When the 5-ALA contrast medium inject the veins, it can absorb the blue wave, that then causes the tumor show in red from the monitor display. Doctor will be able to observe where exactly the tumor cells are at.
V70-H200LW Ultra-powerful white light source, The image displayed by the endoscope with this light source is excellent. Suitable for Neurological Surgery.

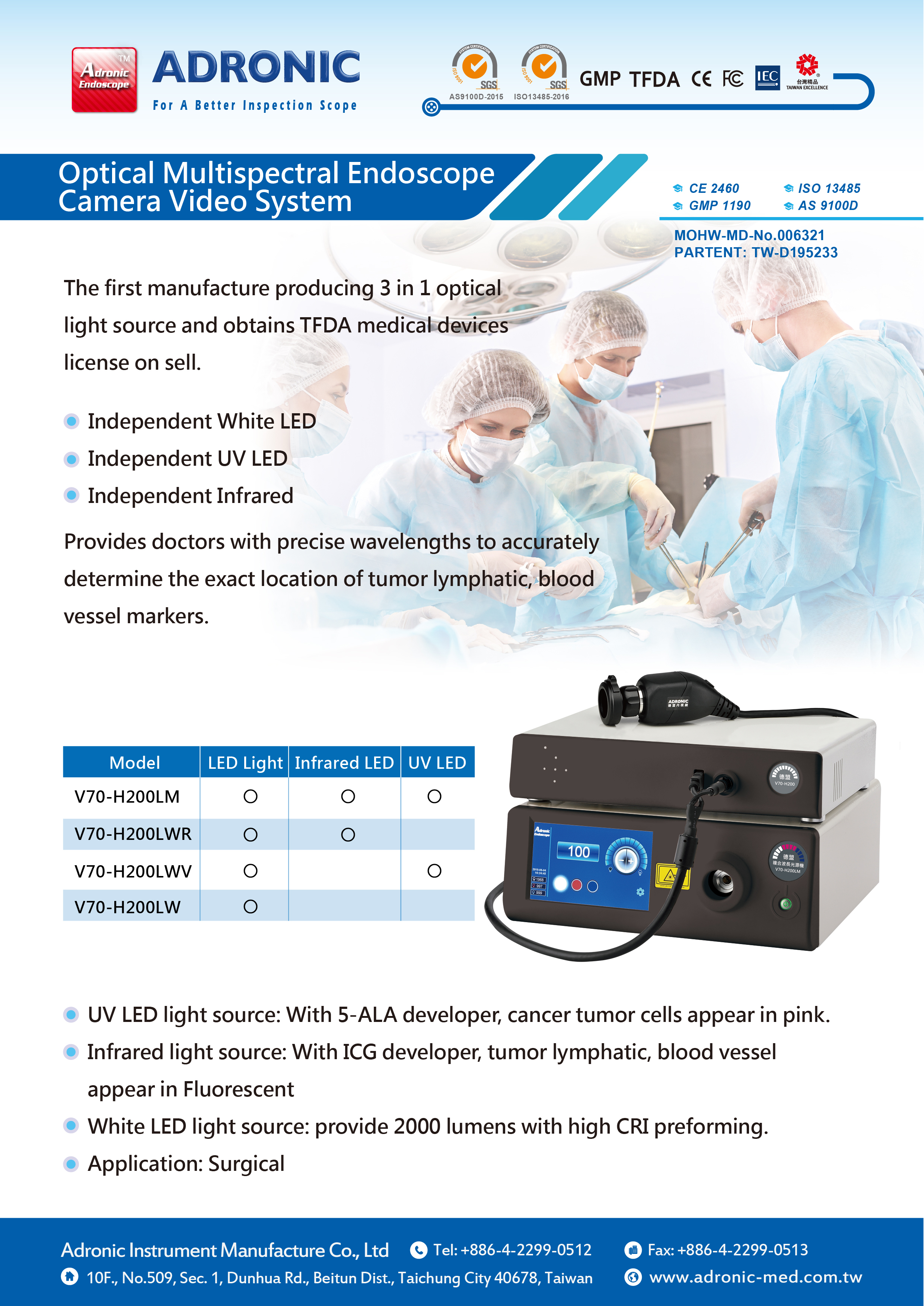

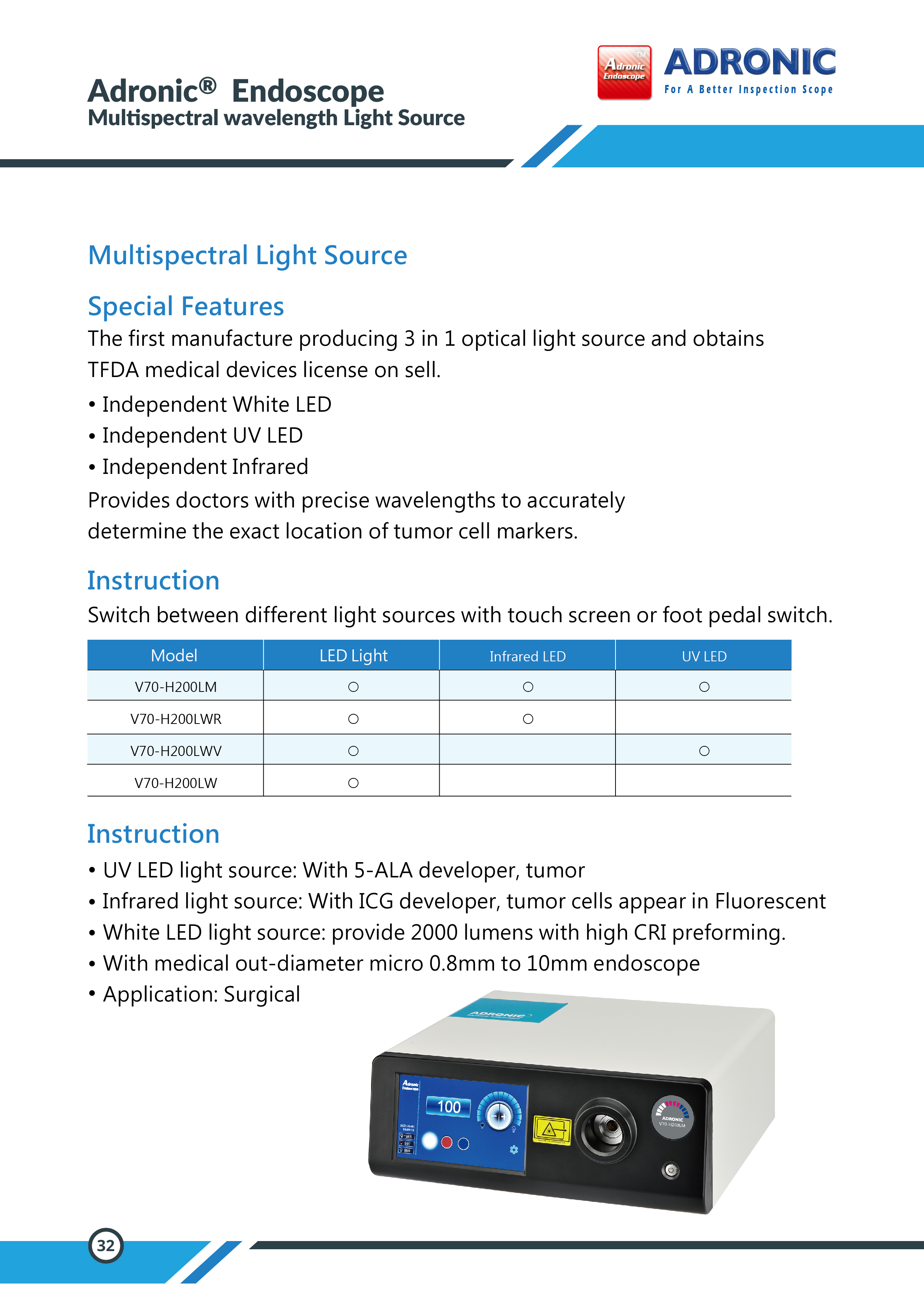

V70-H200L Light source	White light	IR Light	UV light
V70-H200LM	○	○	○
V70-H200LWR	○	○
V70-H200LWV	○		○
V70-H200LW	○
V70-H200LR		○
V70-H200LV			○


Features
◆ Full HD 1920 x 1080P image quality.
◆ HDTV high-definition video modes characterized by 1,920 pixels displayed across the
     screen horizontally and 1,080 pixels down the screen vertically
◆ 1080p60 format, a whole new range of studio equipment including cameras, storage
     and editing systems
◆ Support 14mm-35mm TV camera
◆ Adronic Endoscope Camera designed by build in together LED light source provide
     friendly and compact for user with mist conveniences purpose.
◆ Prorated LED lifetime upto 30,000 hours.

Application
Laparoscopic / Cystoscope / Urethoscopy / Arthroscopy / Hysteroscope

Specifications

Light source	V70-H200L
Camera Effective Pixels	1920×1080P
Minimum illumination	0.6lux (AGC ON) F1.2
Lens Mount	C-Mount
Bit depths	RGB24bit
Sensor Size	Sony CCD 1/2.8〞
User profile	0-7
Light intensity	>2,000,000LX
Life time	>30,000hr
LED Color temperature	6000K
Lumen	2195 Lm
Per second photo fram	60 fps
Cell Size(HXV,μm)	2.8um x 2.8um
White balance	Auot and Manual
Output	HDMI/VGA
Low Carbon	Yes

V70-H200L Light source	White light	IR Light	UV light
V70-H200LM	○	○	○
V70-H200LWR	○	○
V70-H200LWV	○		○
V70-H200LW	○
V70-H200LR		○
V70-H200LV			○



Light source	V70-H200L
Camera Effective Pixels	1920×1080P
Minimum illumination	0.6lux (AGC ON) F1.2
Lens Mount	C-Mount
Bit depths	RGB24bit
Sensor Size	Sony CCD 1/2.8〞
User profile	0-7
Light intensity	>2,000,000LX
Life time	>30,000hr
LED Color temperature	6000K
Lumen	2195 Lm
Per second photo fram	60 fps
Cell Size(HXV,μm)	2.8um x 2.8um
White balance	Auot and Manual
Output	HDMI/VGA
Low Carbon	Yes
