◆ Model: V70-H200LWR
Adronic Medical Infrared / White Light Source

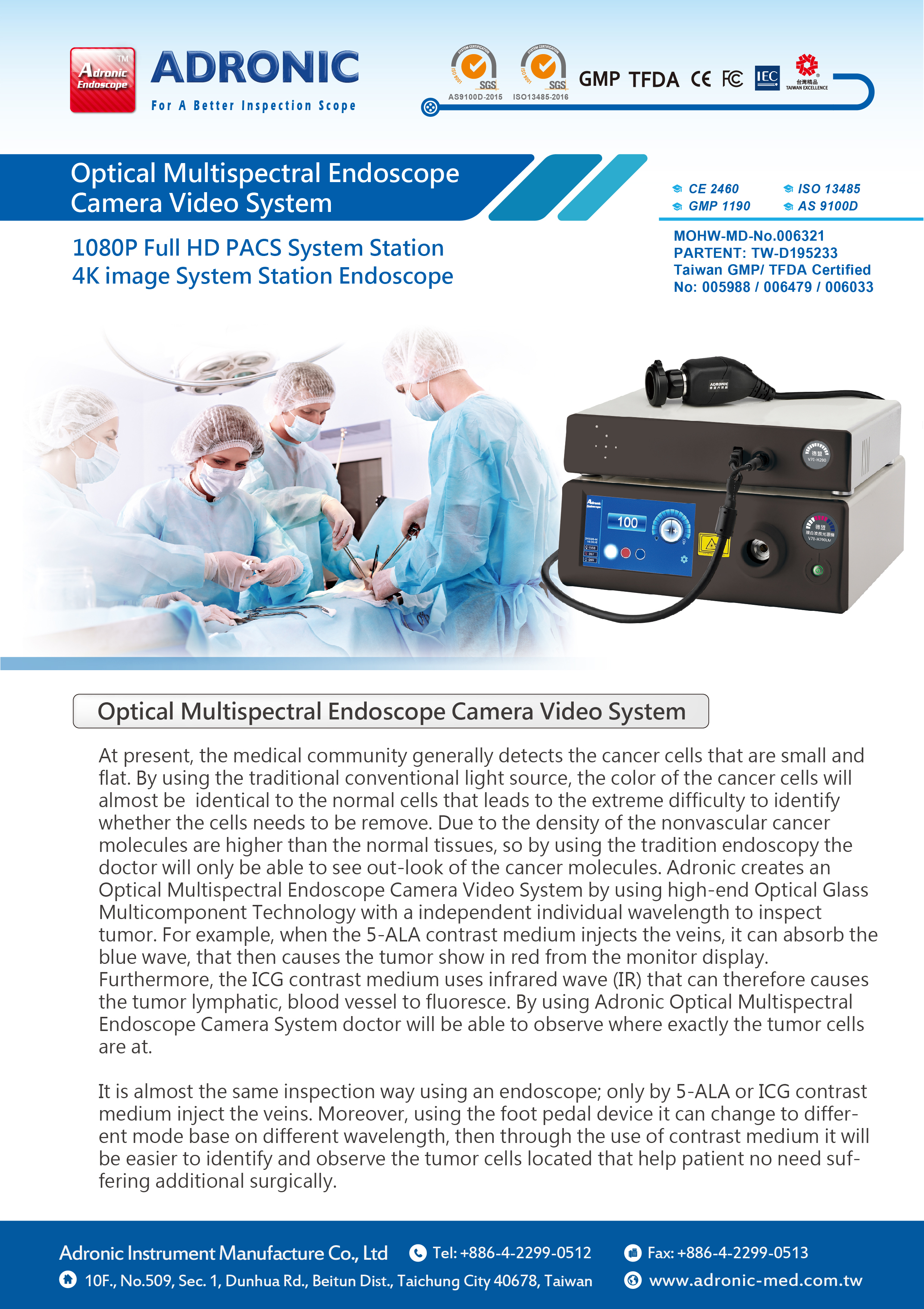

Adronic also ICG endoscope camera system. the ICG contrast medium uses
infrared wave (IR) that can therefore causes the tumor, Lymphatic, blood vessel to fluoresce. By usingAdronic Optical Multispectral Endoscope Camera Video System doctor will be able to observe where exactly the tumor, Lymphatic, blood vessel are at.
Features
◆ Applicable department : Plastic Surgery、Breast surgery、Dermatology
◆ A good helper of outpatient / telemedicine / long-term care / surgery room / ward
◆ Monitors edema of lymph in flaps
Adronic Medical Infrared / White Light Source
Adronic also ICG endoscope camera system. the ICG contrast medium uses
infrared wave (IR) that can therefore causes the tumor, Lymphatic, blood vessel to fluoresce. By usingAdronic Optical Multispectral Endoscope Camera Video System doctor will be able to observe where exactly the tumor, Lymphatic, blood vessel are at.
Features
◆ Applicable department : Plastic Surgery、Breast surgery、Dermatology
◆ A good helper of outpatient / telemedicine / long-term care / surgery room / ward
◆ Monitors edema of lymph in flaps

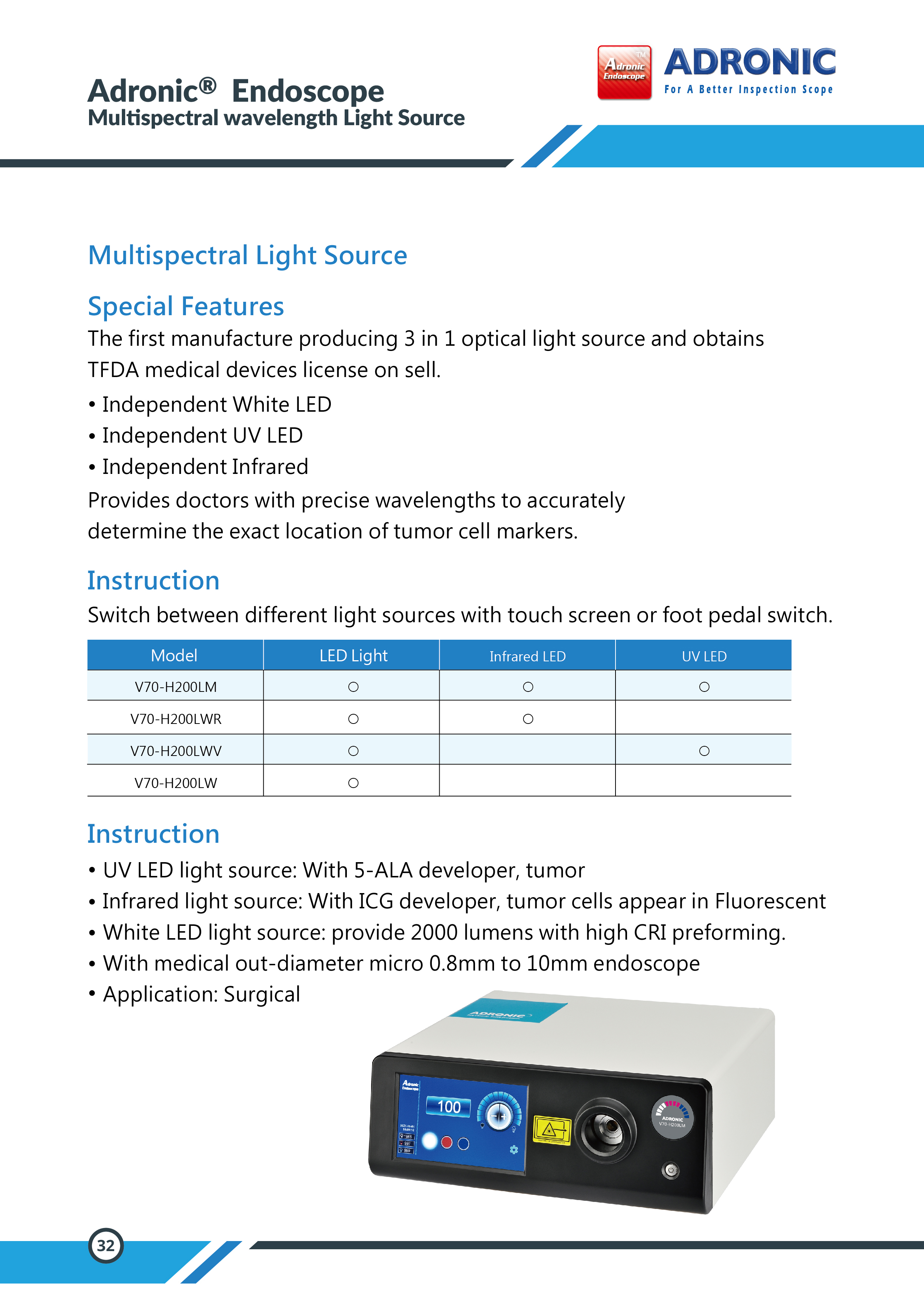

V70-H200L Light source |
White light | IR Light | UV light |
---|---|---|---|
V70-H200LM | ○ | ○ | ○ |
V70-H200LWR | ○ | ○ | |
V70-H200LWV | ○ | ○ | |
V70-H200LW | ○ | ||
V70-H200LR | ○ | ||
V70-H200LV | ○ |
Light source | V70-H200L |
---|---|
Camera Effective Pixels | 1920×1080P |
Minimum illumination | 0.6lux (AGC ON) F1.2 |
Lens Mount | C-Mount |
Bit depths | RGB24bit |
Sensor Size | Sony CCD 1/2.8〞 |
User profile | 0-7 |
Light intensity | >2,000,000LX |
Life time | >30,000hr |
LED Color temperature | 6000K |
Lumen | 2195 Lm |
Per second photo fram | 60 fps |
Cell Size(HXV,μm) | 2.8um x 2.8um |
White balance | Auot and Manual |
Output | HDMI/VGA |
Low Carbon | Yes |
