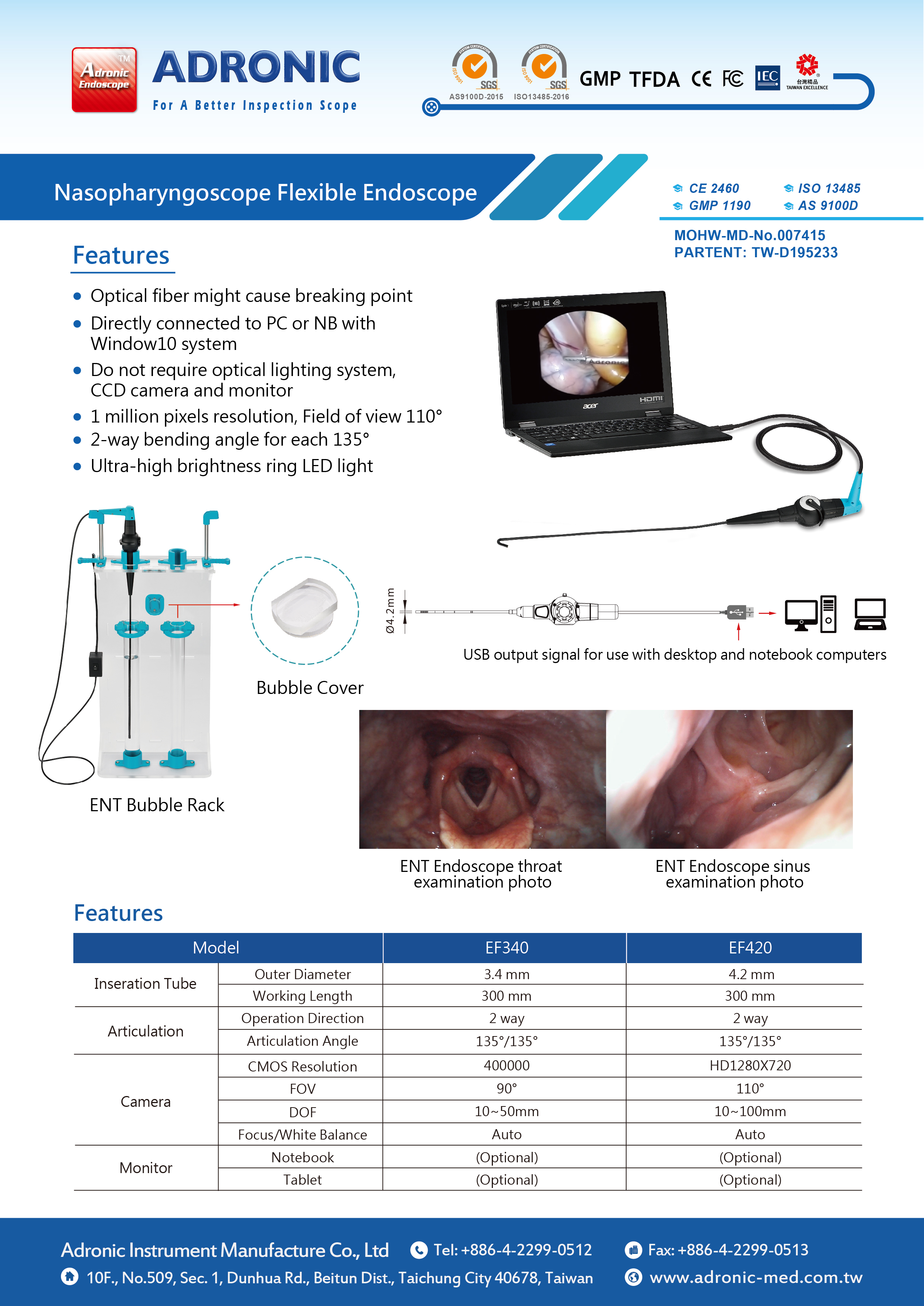

◆ Model:EF340/ EF420
EF340-300(OD3.4mm/L300mm)
EF420-300(OD4.2mm/L300mm)

Adronic Video Flexible Endoscope
◆ Optical fiber might cause breaking point
◆ Directly connected to PC or NB with Window10 system
◆ Do not require optical lighting system, CCD camera and monitor
◆ 1 million pixels resolution, Field of view 110°
◆ 2-way bending angle for each 135°
◆ Ultra-high brightness ring LED light





◆ Model:V70-ENFV1USB34 / V70-ENFV1USB
Digital electronic inspection soft mirror: USB output signal, used with Android mobile phones, tablets, desktops, notebooks.

Bubble Rack & Bubble Cover

◆ Model:AFM001
TFDA Medical Equipment Name
Inspection mirrors and accessories(I.1800)

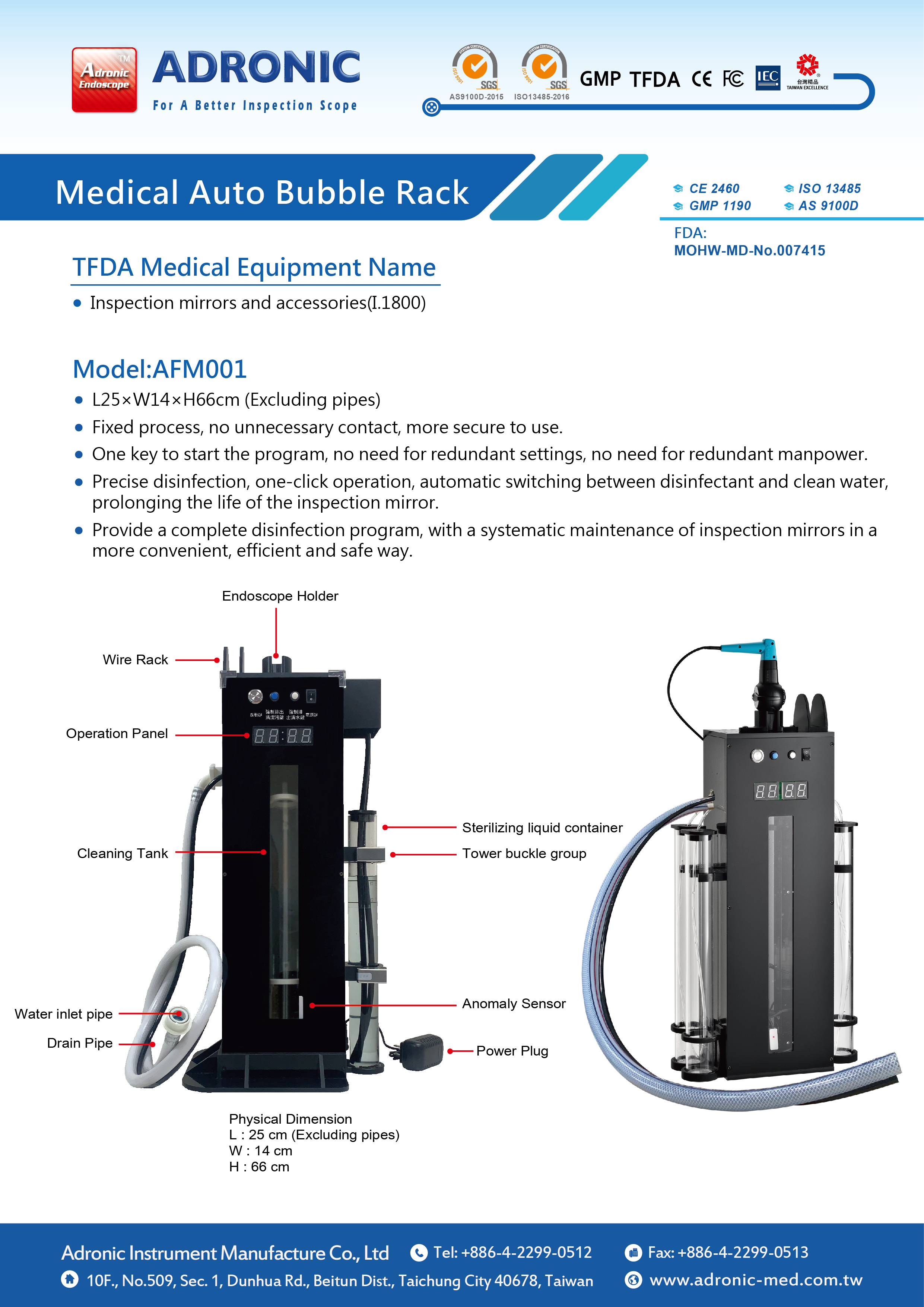

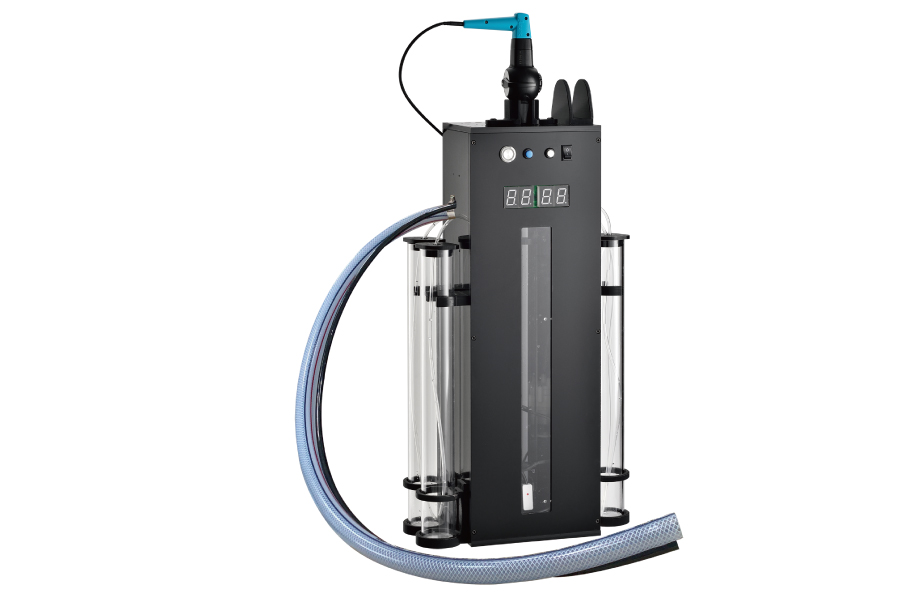

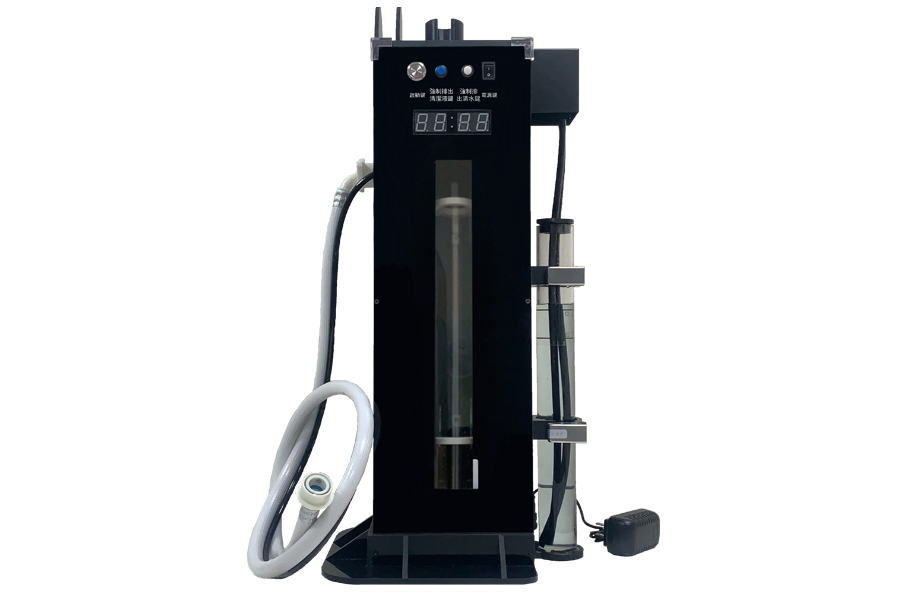

Adronic Medical Auto Bubble Rack
◆ L25×W14×H66cm (Excluding pipes)
◆ Fixed process, no unnecessary contact, more secure to use.
◆ One key to start the program, no need for redundant settings, no need for redundant manpower.
◆ Precise disinfection, one-click operation, automatic switching between disinfectant and clean water,
prolonging the life of the inspection mirror.
◆ Provide a complete disinfection program, with a systematic maintenance of inspection mirrors in a
more convenient, efficient and safe way.






Model		EF340		EF420

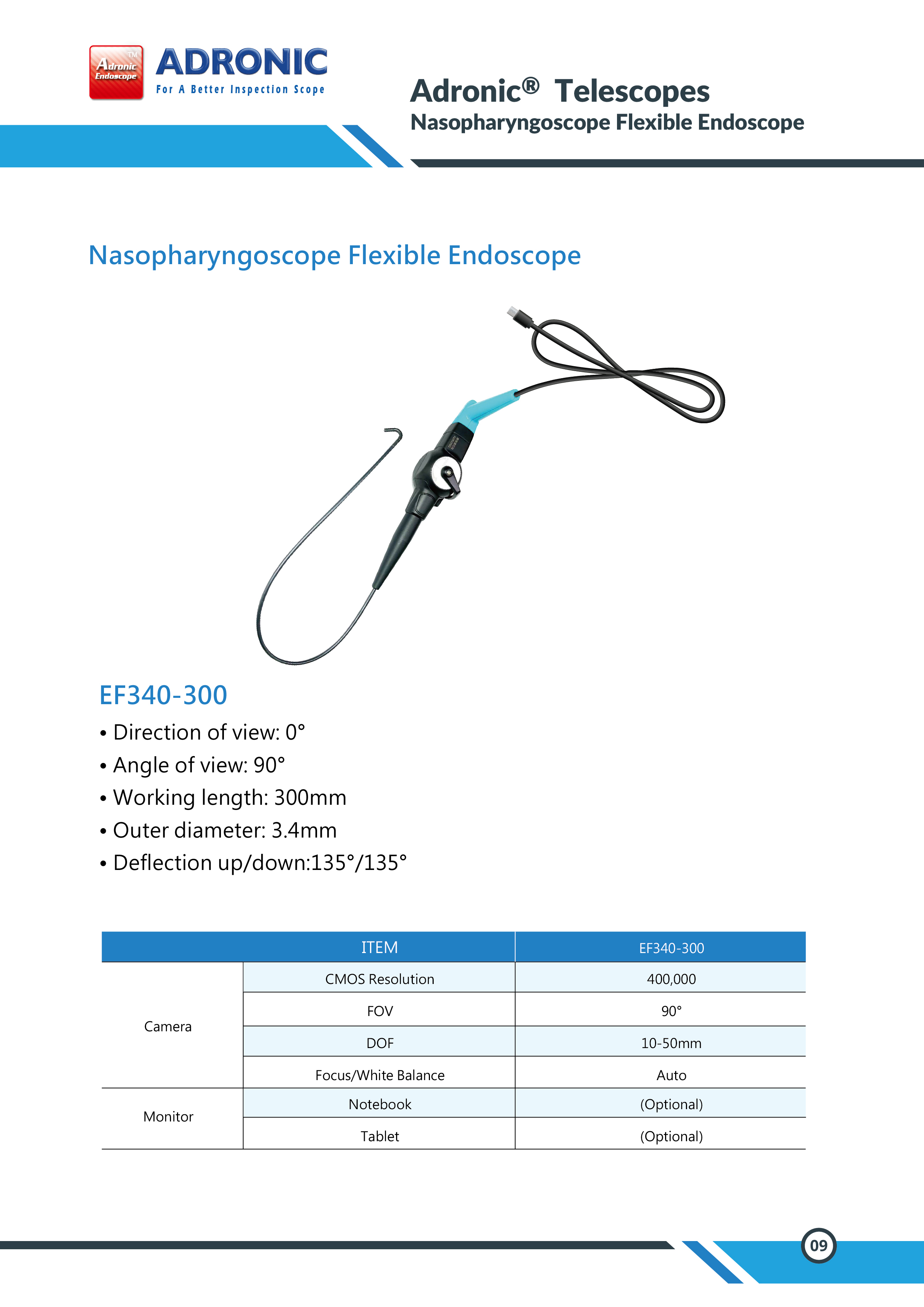

Nasopharyngoscope Flexible Endoscope
Inseration Tube	Outer Diameter	3.4 mm		4.2mm
	Working Length
		300 mm		300mm
Articulation	Operation Direction	2 way		2 way
	Articulation Angle
		135°/135°		135°/135°
Camera	CMOS Resolution	400000		HD1280X720
	FOV	90°		110°
	DOF	10~50mm		10~100mm
	Focus/White Balance	Auto		Auto
Monitor	Notebook	(Optional)		(Optional)
	Tablet
		(Optional)		(Optional)
