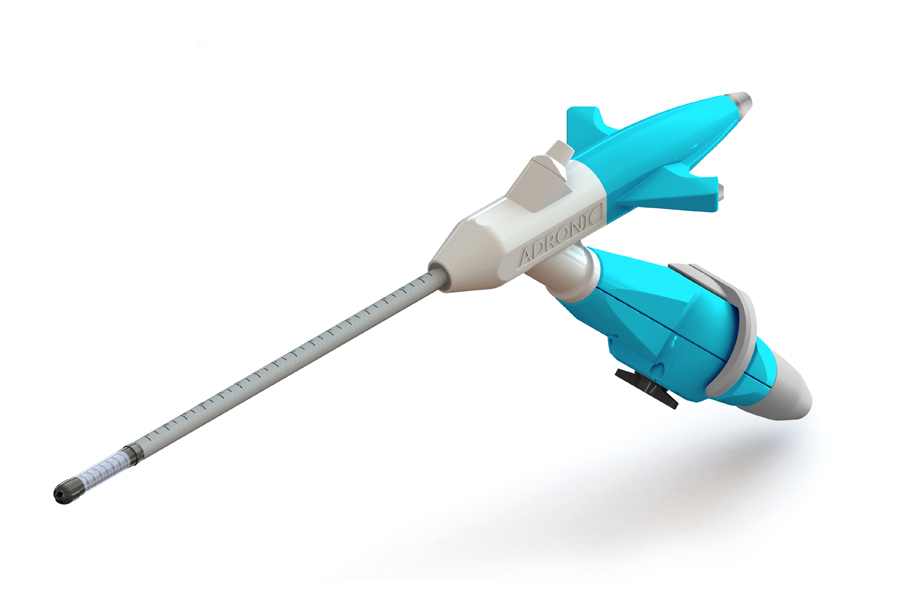

Articulation Tumor Trocar Endoscope
◆ Provide four cavities for endoscope、working and irrigation

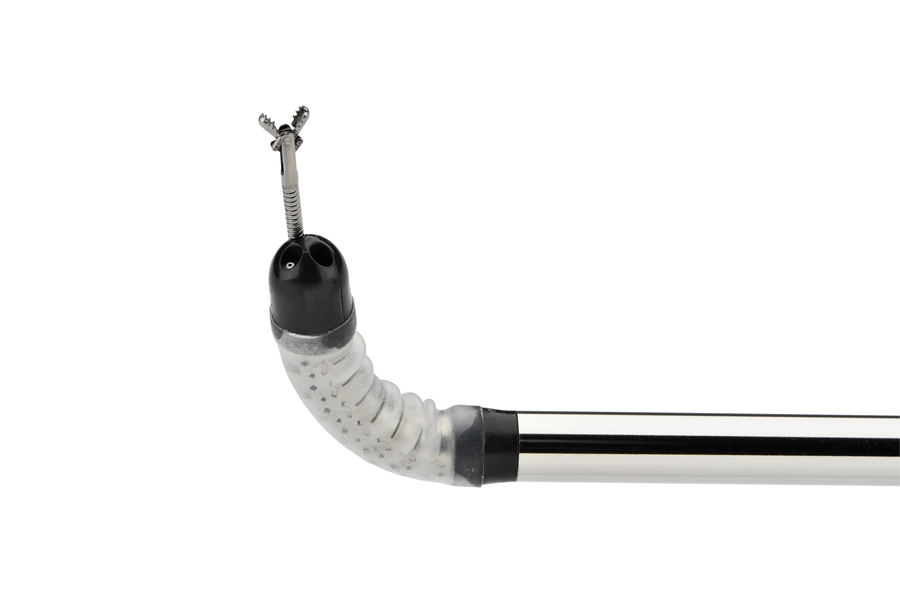

◆ Working channel is able to turn to different angles, allowing
   doctors to easily operate with tissue treatment channel
◆ Provide the best observation with 1.6mm flexible endoscope
◆ Provide a wide range of sizes based on outer diameter and
   length in various surgical treatment
◆ Obtain the certificate of the EU Medical Endoscope.
   This device is suitable for other Endoscopic cameras brands
   coming from the US and Japan.

◆ Model:N86-200
◆ Single use only
◆ 1 Flush channel In/out
◆ 2 working channel
◆ 1 Endoscope channel

A. Flush Insulation Channel
B. Flush Insulation Channel
C. Instrument Channel
D. Flexible Endoscope Channel
E. Direction Controller
F. Locking Knob

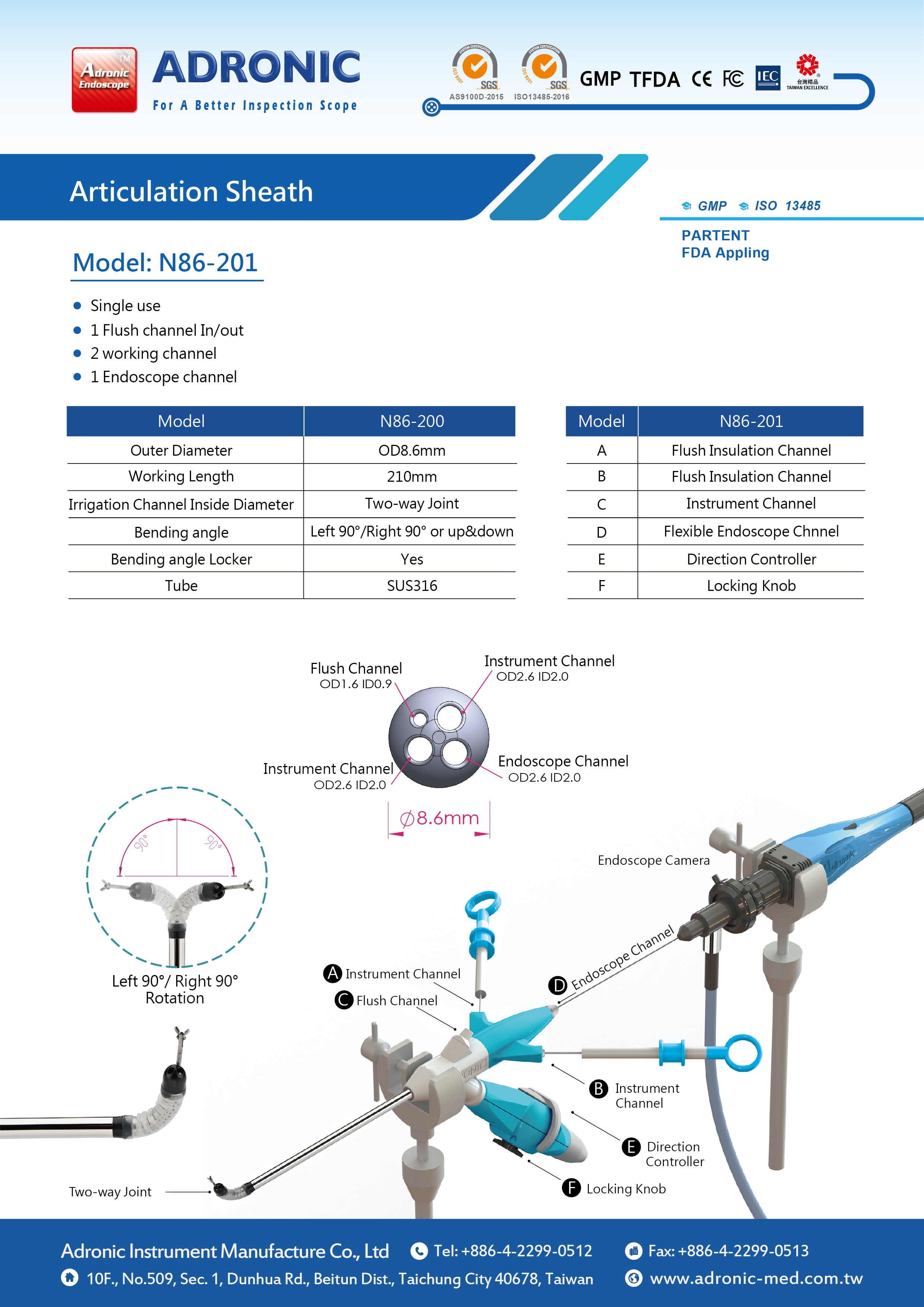

◆ Model:N86-201
◆ Single use only
◆ 1 Flush channel In/out
◆ 2 working channel
◆ 1 Endoscope channel

A. Flush Insulation Channel
B. Flush Insulation Channel
C. Instrument Channel
D. Flexible Endoscope Channel
E. Direction Controller
F. Locking Knob

Model		N86-200		N86-201
Articulation Tumor Trocar
Outer Diameter		OD8.6mm
Working Length		210mm
Probe Type		Metal Rigid SUS316
Articulation	Operation Direction	Two-way Joint
	Rotation Radius
		Left 90°/Right 90°or up&down

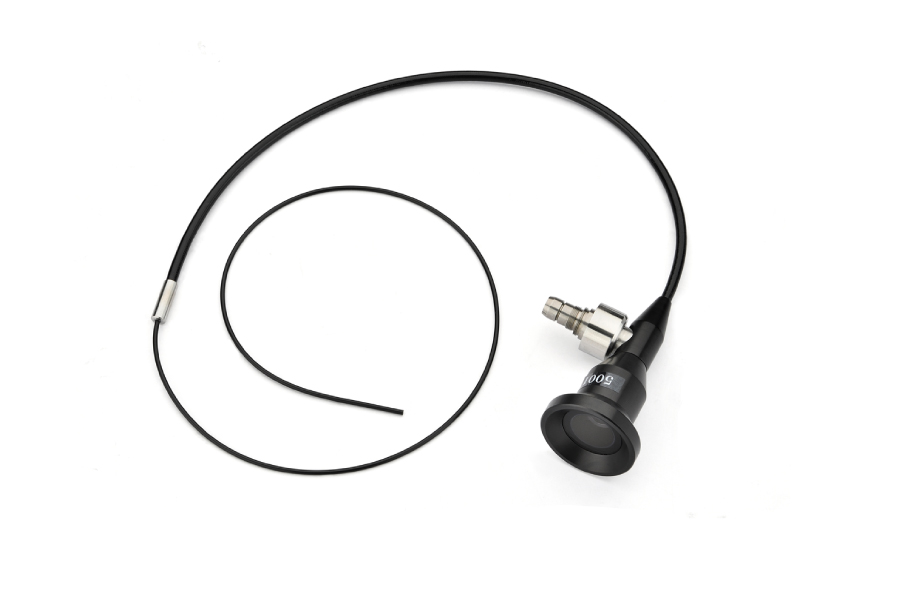

Fiberglass Camera	Outer Diameter	OD1.6mm
	Resolution	9,000 pixes
	FOV	90°
	DOF	2~50mm
	Focus/White Balance	Auto
Endoscope Gate	Inside Diameter	ID2.0mm		ID2.0mm OD2.6mm
	Aisle Holes
		1pc
Machinery Gate	Inside Diameter	ID2.6mm		ID2.0mm OD2.6mm
	Aisle Holes
		2pc
Flush Gate	Inside Diameter	ID1.1mm		ID0.9mm OD1.6mm
	Aisle Holes
		1pc
Operating components (Optional)	Camera	Adronic CCD HD camera
	Light Source
		2in1 Light Source / 3in1  4K HD Light Source
	Monitor	Barco Medical LCD/BenQ Medical LCD
